H7005C 2RZDT P4
Model No. H7005C 2RZDT P4
Type : Super Precision Spindle Bearings
Size: 25x47x12mm
Weight: 0.182KG
Datasheet and drawing can be offered.
Stock available for fast delivery,contact me for a quick quotation
Sales Director :arya
Email: arya@bearing-sun.com
H7005C 2RZDT P4
H7005C 2RZDT P4 bearing is a a high-precision spindle bearing，used in pairs . with a contact angle of 15 degrees, double-sided non-contact rubber seals, arranged in series, and has a precision grade of P4, which is often used in high-precision mechanical equipment such as machine tool spindles.
Suffix means :
- H usually indicates a high-precision spindle bearing.
- C means the contact angle is 15 degrees.
- 2RZ indicates that the bearing has double-sided non-contact rubber seals.
- DT means that the bearings are arranged in series, which can bear a larger axial load in one direction.
- P4 means that the dimensional and rotational accuracy of the bearing meets the ISO 4th grade tolerance standard, which is a relatively high-precision grade.
Please feel free to email me if you are interested .arya@bearing-sun.com

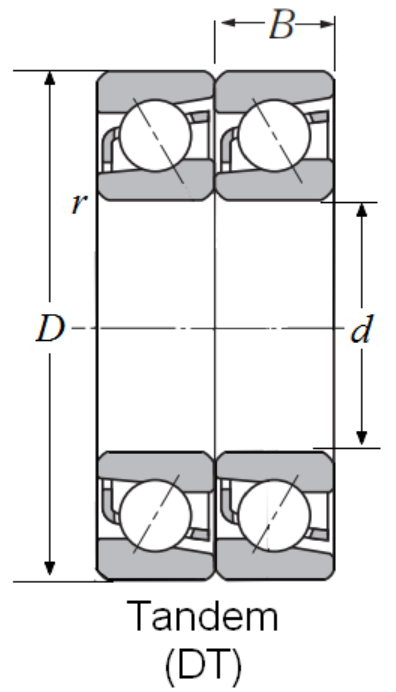

Drawing & Size
| Model No. | H7005C 2RZDT P4 |
| Type | Super Precision Spindle Bearings |
| d | 25 mm |
| D | 47 mm |
| B | 12mm |
| Weight | 0.182 KG |
Below same series bearings are recommended
| Model No. | d | D | B | c | Da | da | r(min) | r1(min) | ra(max) | ra1(max) | Weight/kg | |
| H7000C-2RZ-P4 | 10 | 26 | 8 | 6.4 | 22 | 14 | 0.3 | 0.3 | 0.3 | 0.1 | 15° | 0.022 |
| H7001C-2RZ-P4 | 12 | 28 | 8 | 6.7 | 24.5 | 16.5 | 0.3 | 0.3 | 0.3 | 0.1 | 15° | 0.024 |
| H7002C-2RZ-P4 | 15 | 32 | 9 | 7.6 | 28 | 19 | 0.3 | 0.2 | 0.3 | 0.1 | 15° | 0.028 |
| H7003C-2RZ-P4 | 17 | 35 | 10 | 8.5 | 32 | 21 | 0.4 | 0.3 | 0.3 | 0.1 | 15° | 0.043 |
| H7004C-2RZ-P4 | 20 | 42 | 12 | 10.2 | 37 | 25 | 0.6 | 0.3 | 0.6 | 0.3 | 15° | 0.067 |
| H7005C-2RZ-P4 | 25 | 47 | 12 | 10.8 | 42 | 30 | 0.6 | 0.3 | 0.6 | 0.3 | 15° | 0.075 |
| H7006C-2RZ-P4 | 30 | 55 | 13 | 12.3 | 49 | 36 | 1 | 0.6 | 1 | 0.3 | 15° | 0.108 |
| H7007C-2RZ-P4 | 35 | 62 | 14 | 13.5 | 56 | 41 | 1 | 0.6 | 1 | 0.3 | 15° | 0.153 |
| H7008C-2RZ-P4 | 40 | 68 | 15 | 14.7 | 62 | 46 | 1 | 0.6 | 1 | 0.3 | 15° | 0.188 |
| H7009C-2RZ-P4 | 45 | 75 | 16 | 16 | 69 | 51 | 1 | 0.6 | 1 | 0.3 | 15° | 0.239 |
| H7010C-2RZ-P4 | 50 | 80 | 16 | 16.7 | 74 | 56 | 1 | 0.6 | 1 | 0.3 | 15° | 0.254 |
| H7011C-2RZ-P4 | 55 | 90 | 18 | 18.7 | 83 | 62 | 1.1 | 0.6 | 1 | 0.6 | 15° | 0.377 |
| H7012C-2RZ-P4 | 60 | 95 | 18 | 19.4 | 88 | 67 | 1.1 | 0.6 | 1 | 0.6 | 15° | 0.401 |
