PRODUCT
35TAC72CSUHPN7C NSK
Product Attributes :
Model No. 35TAC72CSUHPN7C NSK
Type : Super Precision Spindle Bearings
Size: 35x72x15mm
Weight: 0.31KG
Datasheet and drawing can be offered.
Stock available for fast delivery,contact me for a quick quotation
Sales Director :arya
Email: arya@bearing-sun.com
Product Description

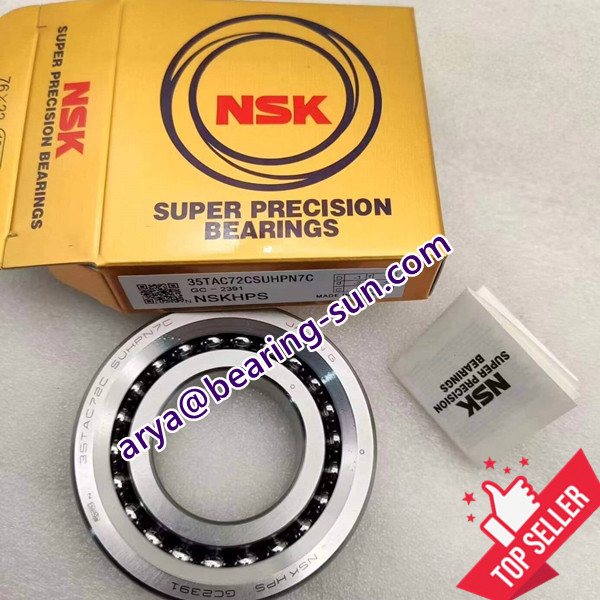

35TAC72CSUHPN7C NSK
35TAC72CSUHPN7C is a type of Angular Contact Ball Super Precision Spindle Bearings
Suffix means :
- C60° Contact Angle
- SUHSingle Universal Bearing, Heavy Preload
- PN7CNSK Standard Accuracy Class 7C (Equivalent To Axial Runout Class 2)
Please feel free to email me if you are interested .arya@bearing-sun.com

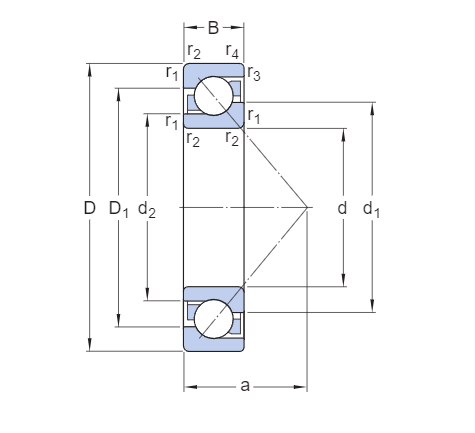

Drawing & Size
| Model No. | Super Precision Spindle Bearings |
| d | 35 mm |
| D | 72 mm |
| B | 15mm |
| Weight | 0.31 KG |
Below same series bearings are recommended
| Model No. | d mm | D mm | B mm |
| 15TAC 47B | 15 | 47 | 15 |
| 17TAC 47B | 17 | 47 | 15 |
| 20TAC 47B | 20 | 47 | 15 |
| 25TAC 62B | 25 | 62 | 15 |
| 30TAC 62B | 30 | 62 | 15 |
| 35TAC 72B | 35 | 72 | 15 |
| 40TAC 72B | 40 | 72 | 15 |
| 40TAC 90B | 40 | 90 | 20 |
| 45TAC 75B | 45 | 75 | 15 |
| 45TAC 100B | 45 | 100 | 20 |
| 50TAC 100B | 50 | 100 | 20 |
| 55TAC 100B | 55 | 100 | 20 |
| 55TAC 120B | 55 | 120 | 20 |
| 60TAC 120B | 60 | 120 | 20 |
