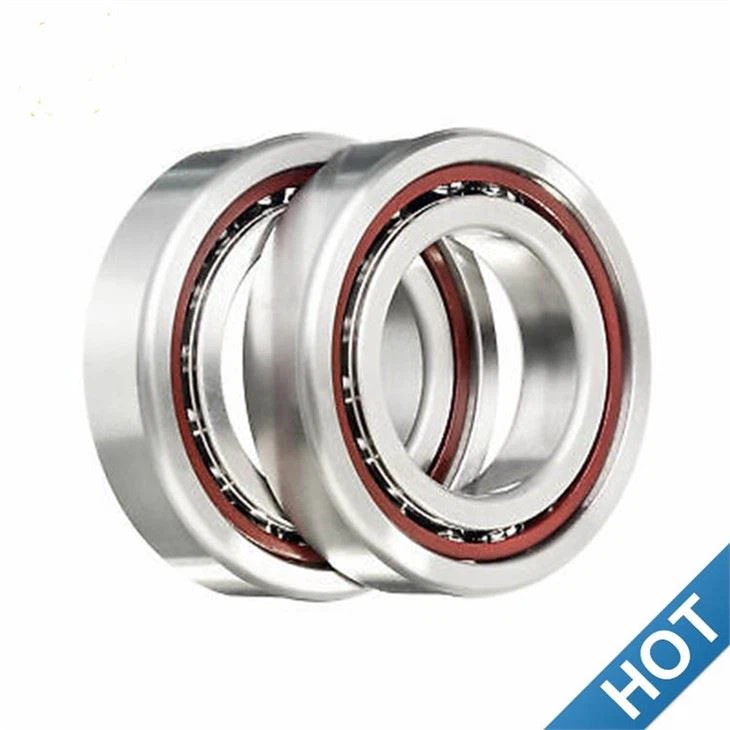

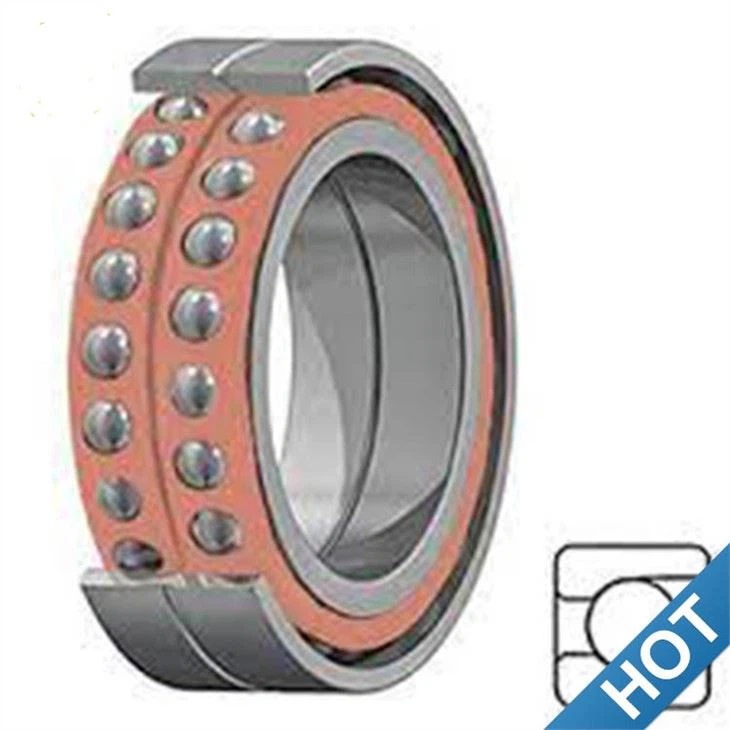

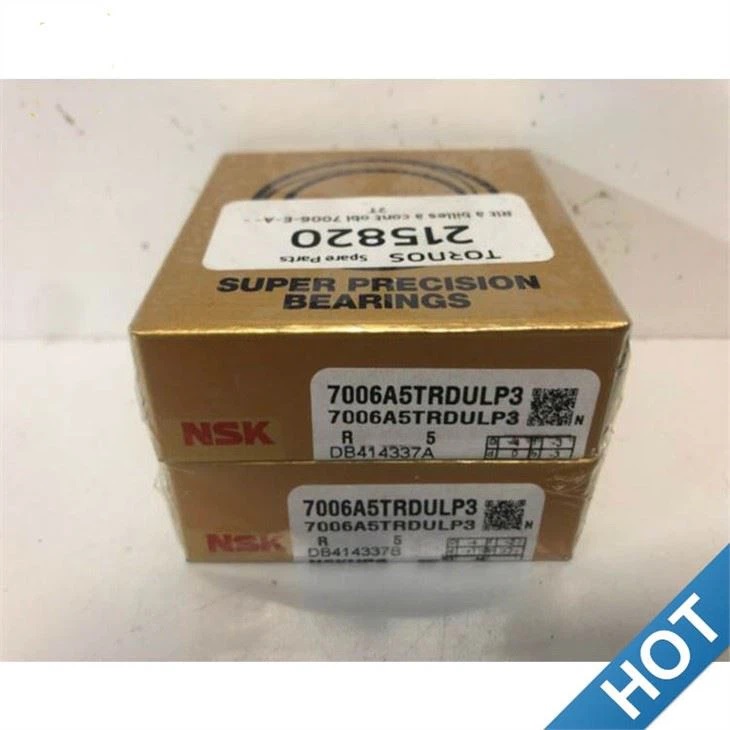

7006A5TRDULP3 NSK Precision Bearing
*7006A5TRDULP3 Spindle Bearing
*Dimensions: 30x55x13mm
*Weight：0.114KG
*Datasheets and drawings can be offered.
*They are stock available for fast delivery.
*If you want to know more about 7006A5TRDULP3 bearing, email: alita@bearing-sun.com
Features:
7006A5TRDULP3 uses long-life bearing steel (Z steel) as standard material, and can also be equipped with a sealing ring to increase the grease life by 1.5 times. This bearing is equipped with two types of cages depending on the type.
Data sheet and drawing for 7006A5TRDULP3 spindle bearing:
|
Type |
Super precision spindle bearing |
|
Model |
7006A5TRDULP3 |
|
Inside diameter |
30 mm |
|
Outside diameter |
55 mm |
|
Width |
13 mm |
|
Cage type |
plastic |
|
seals |
open |
|
clearance |
standard |
|
Dynamic load rating |
14.4 kN |
|
Static load rating |
9.8 kN |
|
Grease limiting speed |
23600 r/min |
|
Oil limiting speed |
35300 r/min |
|
Mass |
0.114 kg |
Application for precision bearing:
It is suitable for the use of machine tool spindles and other rotating bodies that require high vibration accuracy and fast speed.
