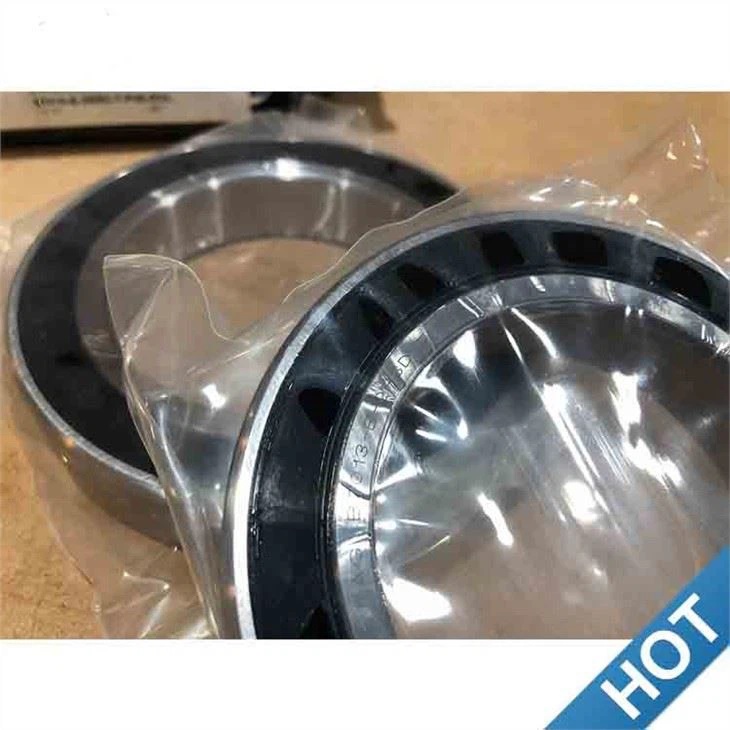

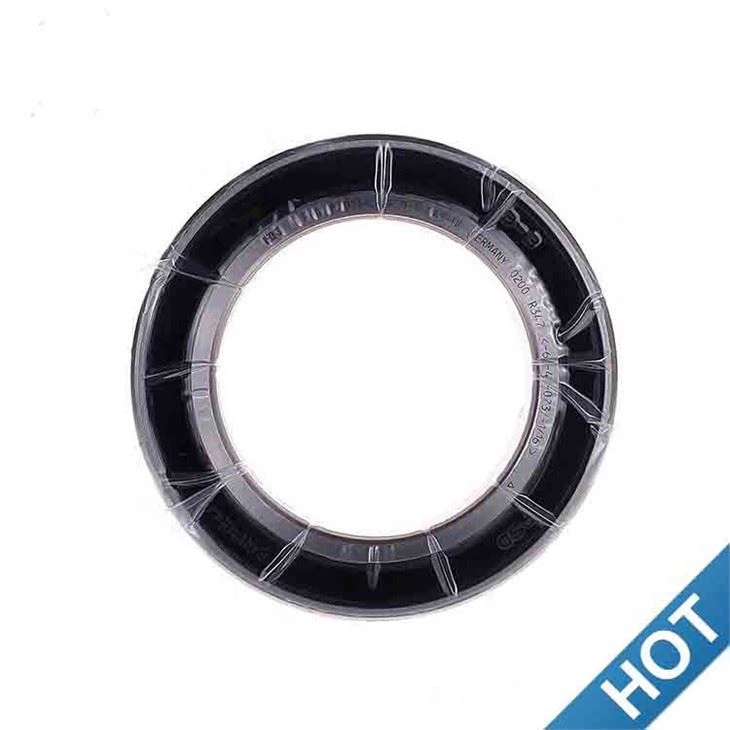

B7013-E-2RSD-T-P4S-UL Precision Bearing
*B7013-E-2RSD-T-P4S-UL Spindle Bearing
*Dimensions: 65x100x18mm
*Weight：0.004KG
*Datasheets and drawings can be offered.
*They are stock available for fast delivery.
*If you want to know more about B7013-E-2RSD-T-P4S-UL bearing, email: alita@bearing-sun.com
Spindle bearings B7013-E-2RSD-T-P4S-UL, adjusted, in pairs or sets, contact angle α = 25°, lip seals on both sides, non-contact, restricted tolerances.
Data sheet and drawing for B7013-E-2RSD-T-P4S-UL spindle bearing:
|
Type |
Super precision spindle bearing |
|
Model |
B7013-E-2RSD-T-P4S-UL |
|
d |
65 mm |
|
D |
100 mm |
|
B |
18 mm |
|
a |
28.2 mm |
|
Da |
93 mm |
|
da |
72 mm |
|
r1 min |
1.1 mm |
|
ra max |
1 mm |
|
ra1 max |
0.6 mm |
|
Rmin |
1.1 mm |
|
α |
15 ° |
|
Cr basic dynamic load rating |
39000 N |
|
C0r basic static load rating |
24100 N |
|
Cur fatigue load limit |
2550 N |
|
Limiting speed for grease lubrication |
13000 1/min |
|
Mass |
0.004 kg |
Application for precision bearing:
They can be used in machine tool manufacturing, factory automation, aviation/aerospace, electric power, metallurgy, petrochemical, medical and other fields.
