Product Description

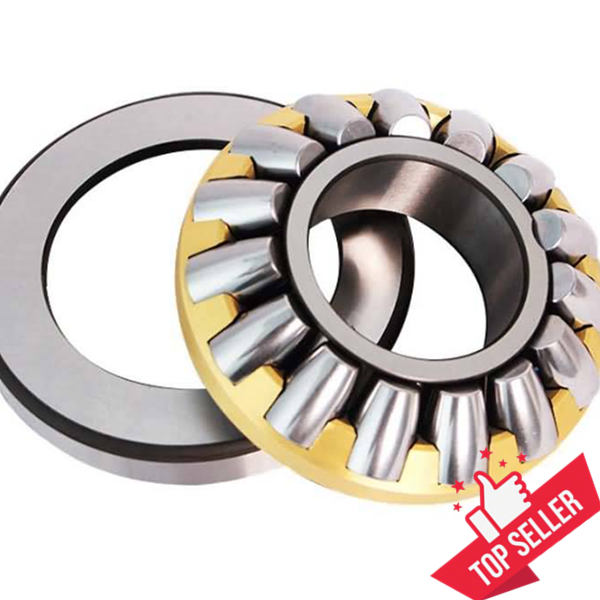

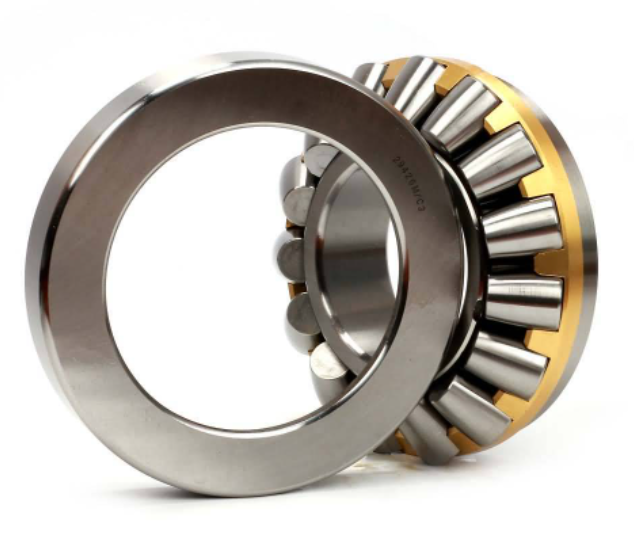

Thrust Roller Bearings
Thrust Roller Bearings are a type of rolling-element bearing designed specifically to handle axial loads (forces acting parallel to the bearing’s central axis), rather than radial loads (forces perpendicular to the axis). They cannot withstand significant radial loads and are primarily used in applications where axial force needs to be transferred smoothly.
Common Types
★ Here are our top-selling Thrust Roller Bearings list
| bearings number | size mm | bearings number | size mm |
| 20TP103 | 50.800x 152.400x 34.925 | 100TP144 | 254.000 x457.200x 95.250 |
| 20TP104 | 50.800x 177.800x 34.925 | 100TP145 | 254.000x 508.000x 95.250 |
| 30TP106 | 76.200x 152.400x 34.925 | F-2658-B | 280.000x 375.400x 53.010 |
| 30TP107 | 76.200 x177.800 x34.925 | 120TP151 | 304.800x 457.200x 95.250 |
| 30TP108 | 76.200x 203.200x 34.925 | 120TP152 | 304.800x 508.000x 114.300 |
| 30TP109 | 76.200x 228.600x 34.925 | 120TP153 | 304.800 x609.600x 114.300 |
| 35TP113 | 88.900 x132.558x 25.400 | S-4790-A(2) | 330.200x 495.300x 88.900 |
| 40TP114 | 101.600 x177.800x 44.450 | 140TP158 | 355.600x 508.000x 95.250 |
| 40TP115 | 101.600x 203.200x 44.450 | 140TP159 | 355.600x 558.800x 95.250 |
| 40TP116 | 101.600x 228.600x 44.450 | 140TP160 | 355.600x 609.600x 95.250 |
| 40TP117 | 101.600x 254.000x 44.450 | 160TP164 | 406.400x 558.800x 114.300 |
| 50TP119 | 127.000x 203.200 x44.450 | 160TP165 | 406.400 x609.600x 114.300 |
| 50TP120 | 127.000x 228.600x 44.450 | 160TP166 | 406.400x 660.400x 114.300 |
| 50TP121 | 127.000x 254.000x 50.800 | S-4750-A(2) | 431.800 x571.500 x88.900 |
| 50TP122 | 127.000 x279.400x 50.800 | E-2192-A(2) | 431.800x 609.600x 101.600 |
| 50TP123 | 127.000 x304.800x 50.800 | E-2191-A | 457.200x 660.400x 101.600 |
| 60TP124 | 152.400 x228.600 x50.800 | 180TP168 | 457.200x 660.400x 127.000 |
| 60TP125 | 152.400x 254.000x 50.800 | 180TP169 | 457.200x 711.200x 127.000 |
| 60TP126 | 152.400 x279.400x 50.800 | 180TP170 | 457.200 x762.000x 139.700 |
| 60TP127 | 152.400x 304.800x 50.800 | S-4791-A(2) | 482.600x 673.100x 114.300 |
| S-4789-A(2) | 174.625 x279.400 x69.850 | 200TP171 | 508.000x 711.200 x139.700 |
| 70TP129 | 177.800 x254.000x 50.800 | 200TP172 | 508.000x 762.000x 139.700 |
| 70TP130 | 177.800x 279.400x 50.800 | 200TP173 | 508.000 x812.800x 152.400 |
| 70TP131 | 177.800x 304.800x 50.800 | B-3653-B | 527.101x 635.127x 44.450 |
| 70TP132 | 177.800x 355.600x 76.200 | B-9054-C(2) | 572.000x 763.000x 115.000 |
