AXK 5070 INA
Product Attributes :
Model No. AXK 5070 INA
Type : Needle roller thrust bearings
Size: 50x70x3mm
Weight: 0.02 KG
Datasheet and drawing can be offered.
Stock available for fast delivery,contact me for a quick quotation
Sales Director :arya
Email: arya@bearing-sun.com
Product Description

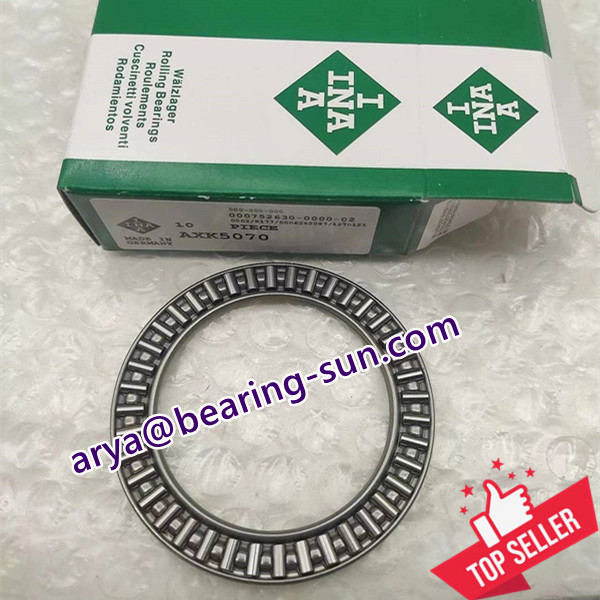

AXK5070
The AXK 5070 is a type of thrust needle roller bearing belonging to the needle roller and cage assembly series.
Please feel free to email me if you are interested .arya@bearing-sun.com

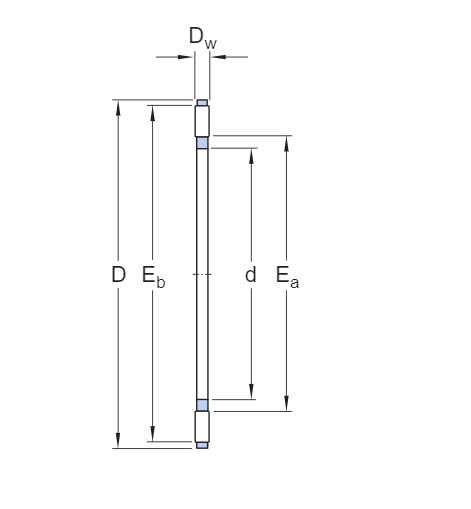

Drawing & Size
| Model No. | AXK 5070 INA |
| Type | Needle roller thrust bearings |
| d | 50 mm |
| D | 70 mm |
| Dw | 3 mm |
| Weight | 0.02 KG |
Below same series bearings are recommended
| Bearing No. | Boundary Dimensions(mm) | Basic Load Ratings(N) | Limiting Speed | |||
| Dc1 | Dc | Dw | Ca | Coa | Oil(RPM) | |
| AXK0414TN | 4 | 14 | 2 | 4450 | 8000 | 18000 |
| AXK0515TN | 5 | 15 | 2 | 4750 | 9200 | 17000 |
| AXK0619TN | 6 | 19 | 2 | 6800 | 15500 | 16000 |
| AXK0821TN | 8 | 21 | 2 | 7800 | 19400 | 15000 |
| AXK1024 | 10 | 24 | 2 | 9200 | 25500 | 14000 |
| AXK1226 | 12 | 26 | 2 | 9900 | 29000 | 13000 |
| AXK1528 | 15 | 28 | 2 | 11300 | 36000 | 11000 |
| AXK1730 | 17 | 30 | 2 | 11900 | 39500 | 10000 |
| AXK2035 | 20 | 35 | 2 | 13100 | 46500 | 8500 |
| AXK2542 | 25 | 42 | 2 | 14700 | 58000 | 7000 |
| AXK3047 | 30 | 47 | 2 | 16300 | 70000 | 6000 |
| AXK3552 | 35 | 52 | 2 | 17800 | 81000 | 5500 |
| AXK4060 | 40 | 60 | 3 | 28000 | 114000 | 4700 |
| AXK4565 | 45 | 65 | 3 | 30000 | 128000 | 4300 |
| AXK5070 | 50 | 70 | 3 | 32000 | 143000 | 3900 |
| AXK5578 | 55 | 78 | 3 | 38000 | 186000 | 3500 |
| AXK6085 | 60 | 85 | 3 | 44500 | 234000 | 3200 |
| AXK6590 | 65 | 90 | 3 | 46500 | 255000 | 3000 |
| AXK7095 | 70 | 95 | 4 | 54000 | 255000 | 2900 |
| AXK75100 | 75 | 100 | 4 | 55000 | 265000 | 2700 |
| AXK80105 | 80 | 105 | 4 | 56000 | 280000 | 2600 |
| AXK85110 | 85 | 110 | 4 | 58000 | 290000 | 2400 |
| AXK90120 | 90 | 120 | 4 | 73000 | 405000 | 2300 |
| AXK100135 | 100 | 135 | 4 | 91000 | 560000 | 2000 |
| AXK110145 | 110 | 145 | 4 | 97000 | 620000 | 1900 |
| AXK120155 | 120 | 155 | 4 | 102000 | 680000 | 1700 |
| AXK130170 | 130 | 170 | 5 | 133000 | 840000 | 1600 |
| AXK140180 | 140 | 180 | 5 | 138000 | 900000 | 1500 |
| AXK150190 | 150 | 190 | 5 | 143000 | 960000 | 1400 |
| AXK160200 | 160 | 200 | 5 | 148000 | 1020000 | 1300 |
