29472 EM Roller Bearing

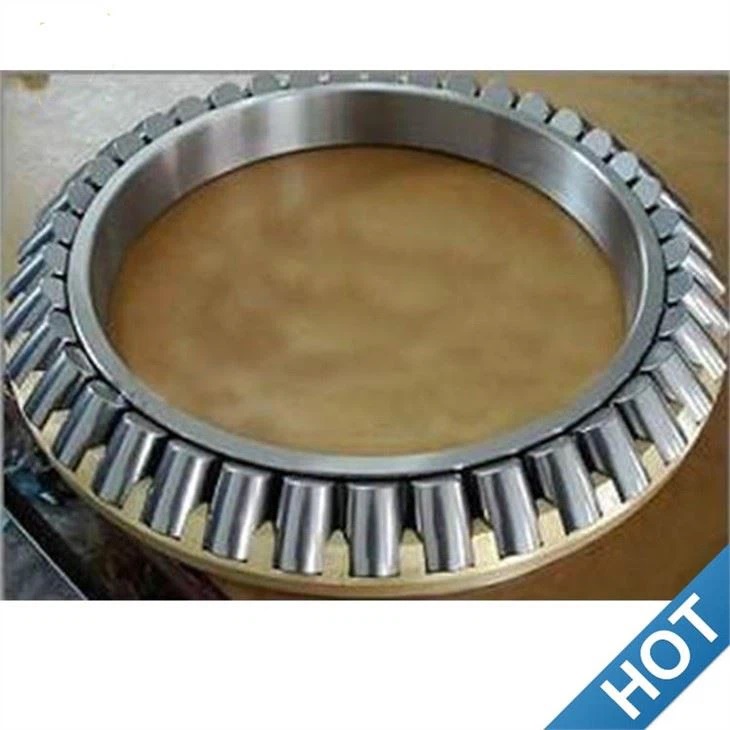

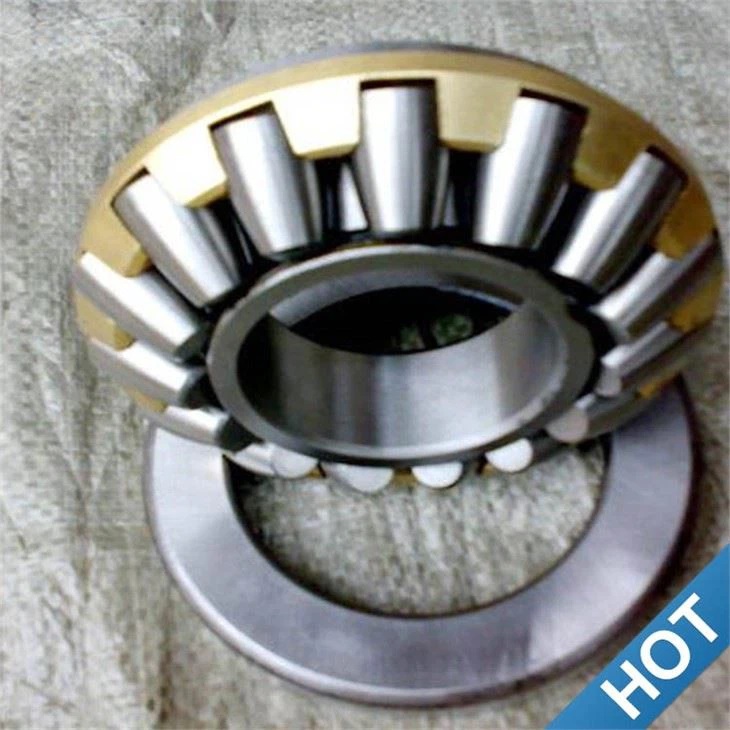

29472 EM Spherical Roller Thrust Bearing
Dimensions: 360x640x170mm
Weight：230KG
Datasheets and drawings can be offered.
They are stock available for fast delivery.
If you want to know more about 29472 EM bearing, email: alita@bearing-sun.com
The 29000 type bearing is an asymmetrical spherical roller, which can reduce the relative sliding of roller and raceway in work, and the roller is long and large in diameter, the number of rollers is large, and the load capacity is high. It is usually lubricated by oil. Grease lubrication can be used in individual low-speed conditions.
Data sheet and drawing for 29472 EM thrust bearing:
|
Type |
Thrust roller bearing |
|
Model |
29472 EM |
|
d |
360 mm |
|
D |
640 mm |
|
H |
170 mm |
|
d1 |
580 mm |
|
D1 |
474 mm |
|
B |
63 mm |
|
B1 |
164 mm |
|
C |
83.5 mm |
|
S |
210 mm |
|
r1,2 min |
7.5 mm |
|
da min |
495 mm |
|
Da max |
550 mm |
|
RA max |
6 mm |
|
Basic dynamic load rating(C) |
6200 kN |
|
Basic static load rating(C0) |
21200 kN |
|
Fatigue load limit(Pu) |
1630 kN |
|
Reference speed |
560 r/min |
|
Limiting speed |
950 r/min |
|
Mass |
230 kg |
Application for spherical roller thrust bearings:
It is widely used in sample screens, plastic color mixers, energy-saving equipment, embossing machines, food and beverage processing equipment, engineering and engineering design, packaging auxiliary equipment, excavators, tower reactors, and other fields.
