29240-E1-MB Thrust Roller Bearing
29240-E1-MB Spherical Roller Thrust Bearing
Dimensions: 200x280x48mm
Weight：8.981KG
Datasheets and drawings can be offered.
They are stock available for fast delivery.
If you want to know more about 29240-E1-MB bearing, email: alita@bearing-sun.com
29268-E1-MB is a thrust spherical roller bearing with the flanging ring. It has a brass cage.
Data sheet and drawing for 29240-E1-MB bearing:
|
Type |
Thrust roller bearing |
|
Model |
29240-E1-MB |
|
d |
200 mm |
|
D |
280 mm |
|
T |
48 mm |
|
D1 |
232.5 mm |
|
d1 |
265 mm |
|
T1 |
24 mm |
|
T2 |
17 mm |
|
T3 |
30 mm |
|
Basic dynamic load rating(C) |
650000 N |
|
Basic static load rating(C0) |
2650000 N |
|
Fatigue load limit(Pu) |
320000 N |
|
Reference speed |
1280 r/min |
|
Limiting speed |
2340 r/min |
|
Mass |
8.981 kg |
Feedback for spherical roller thrust bearings:
This type of bearing is exported to all countries all over the world. A customer from the USA offered high comments about our bearings.
Application for thrust spherical roller bearings:
It is mainly used in screw-frozen machines, coating machines, setting machines, rotary dryers, rotor pumps, wire printers, -election equipment, plastic molding machines, needle inspection equipment, coating equipment, injection molding machine accessories, bridge cranes, drying and solidification equipment, Scooters, glass machinery, and other fields.

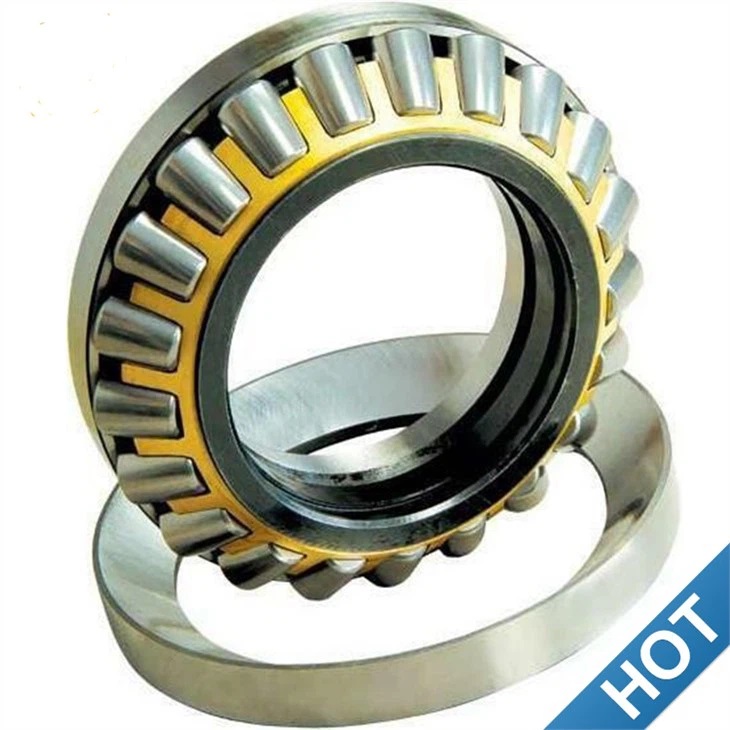

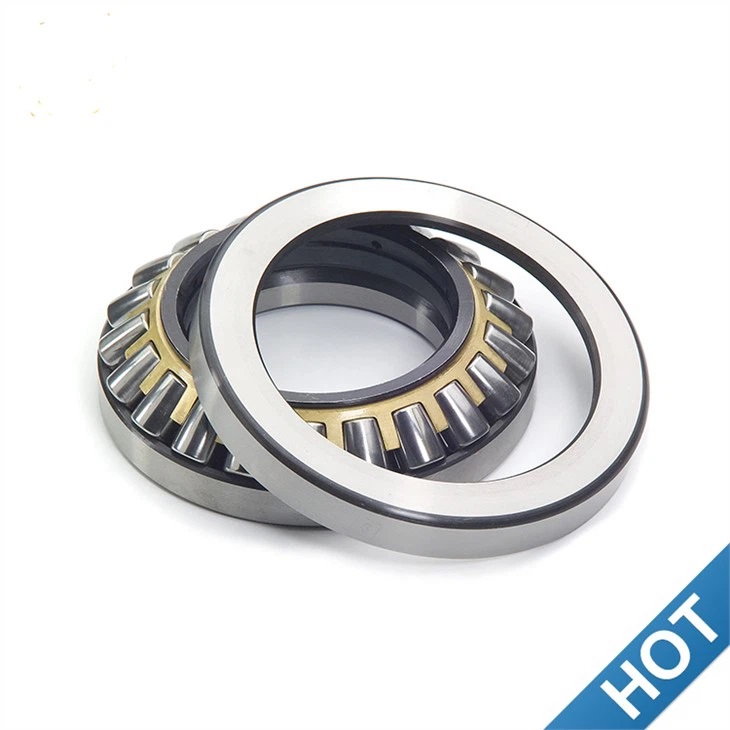

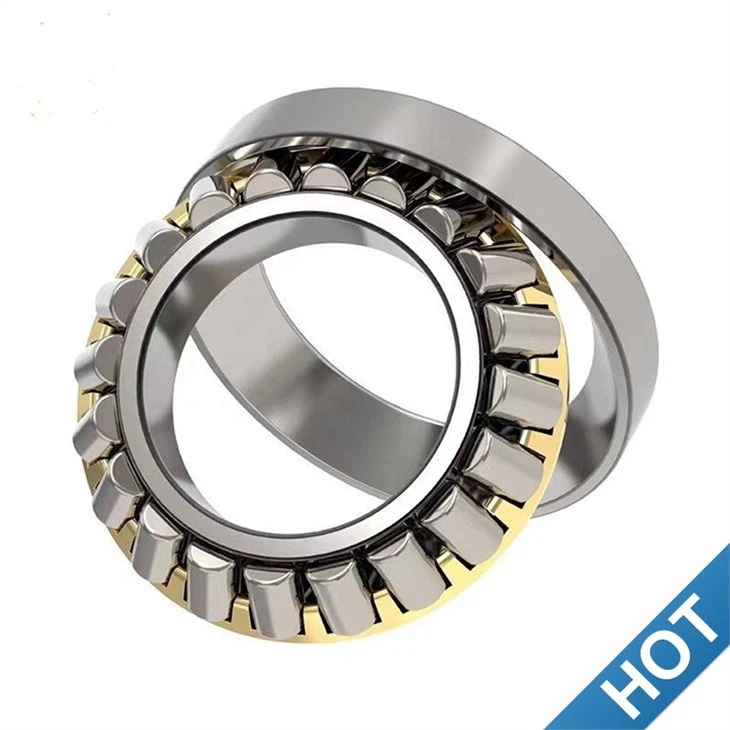

Picture of 29240-E1-MB bearing:
Below are some similar part numbers in stock.
| 29240-E1-MB | 29464-E1-XL | 29396-E1-XL-MB | 29334-E1-XL |
| 29244-E1-MB | 294/560-E1-XL-MB | 292/800-E1-MB | 29438-E1-XL |
| 29248-E1-MB | 294/710-E1-XL-MB | 294/530-E1-XL-MB | 29422-E1-XL |
| 29320-E1-XL | 29472-E1-XL-MB | 29484-E1-XL-MB | 29434-E1-XL |
| 29488-E1-XL-MB | 29492-E1-XL-MB | 29380-E1-XL-MB | 29436-E1-XL |
| 29260-E1-MB | 29238-E1-MB | 29392-E1-XL-MB | 29418-E1-XL |
| 292/630-E1-MB | 29264-E1-MB | 293/800-E1-XL-MB | 29426-E1-XL |
| 29252-E1-MB | 29368-E1-XL-MB | 294/850-E1-MB | 29468-E1-XL |
| 29256-E1-MB | 29372-E1-XL-MB | 292/500-E1-MB | 29428-E1-XL |
| 29272-E1-MB | 29388-E1-XL-MB | 29232-E1-MB | 29430-E1-XL |
| 29284-E1-MB | 294/950-E1-MB | 294/800-E1-MB | 29420-E1-XL |
| 29296-E1-MB | 294/630-E1-XL-MB | 294/750-E1-MB | 29424-E1-XL |
| 29318-E1-XL | 294/670-E1-XL-MB | 294/900-E1-MB | 29417-E1-XL |
| 29440-E1-XL | 29496-E1-XL-MB | 293/710-E1-XL-MB | 29456-E1-XL |
| 29444-E1-XL | 29280-E1-MB | 293/670-E1-XL-MB | 29376-E1-XL-MB |
| 29448-E1-XL | 29288-E1-MB | 292/710-E1-MB | 294/500-E1-XL-MB |
| 29452-E1-XL | 29292-E1-MB | 293/850-E1-MB | 29476-E1-XL-MB |
| 29356-E1-XL | 294/600-E1-XL-MB | 293/750-E1-XL-MB | 29480-E1-XL-MB |
| 29360-E1-XL | 293/500-E1-XL-MB | 294/1060-E1-MB | 29317-E1-XL |
| 29364-E1-XL | 29230-E1-MB | 292/1000-E1-MB | 29322-E1-XL |
| 29413-E1-XL | 292/530-E1-MB | 29412-E1-XL | 29324-E1-XL |
| 29416-E1-XL | 292/560-E1-MB | 29414-E1-XL | 29326-E1-XL |
| 29432-E1-XL | 292/600-E1-MB | 29328-E1-XL | 29336-E1-XL |
| 293/630-E1-XL-MB | 292/670-E1-MB | 29330-E1-XL | 29348-E1-XL |
| 29460-E1-XL | 292/750-E1-MB | 29332-E1-XL | 29352-E1-XL |
| 293/630-E1-XL-MB | 292/950-E1-MB | 29338-E1-XL | |
| 292/850-E1-MB | 29234-E1-MB | 29340-E1-XL | |
| 293/530-E1-XL-MB | 29268-E1-MB | 29344-E1-XL | |
| 294/1000-E1-MB | 29276-E1-MB | 29415-E1-XL | |
| 29460-E1-XL | 29384-E1-XL-MB | 29236-E1-MB |
|
If you need to know more about this bearing, please send us an inquiry below or send us a WhatsApp message.
