PRODUCT
24030 CA/C3W33 SKF
Product Attributes :
Model No. 24030 CA/C3W33 SKF
Type : Spherical roller bearings
Size: 150x225x75mm
Weight: 10.1KG
Datasheet and drawing can be offered.
Stock available for fast delivery,contact me for a quick quotation
Sales Director :arya
Email: arya@bearing-sun.com
Product Description

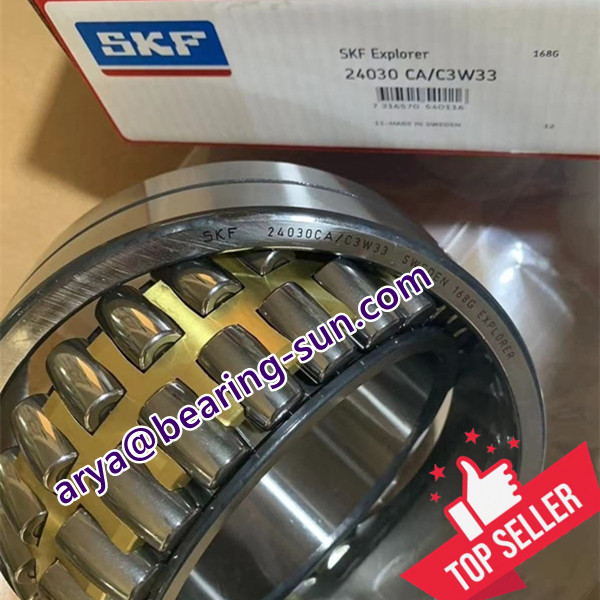

24030 CA/C3W33 SKF
24030 CA/C3W33 is a type of spherical roller bearing with brass cage
Suffix means :
- CA : Machined brass roller-guided cage
- C3: Increased radial clearance for thermal expansion,
- W33: Outer ring lubrication grooves and holes for easy maintenance.
Please feel free to email me if you are interested .arya@bearing-sun.com

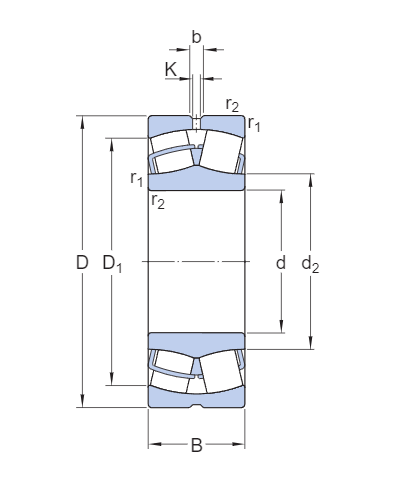

Drawing & Size
| Model No. | 24030 CA/C3W33 SKF |
| Type | Spherical roller bearings |
| d | 150 mm |
| D | 225 mm |
| B | 75 mm |
| Weight | 10.1 KG |
Below same series bearings are recommended
| 24026E1K30 | 23224E1A.M | 223220 | 23028E1A.M |
| 23026E1A.M | 23224E1TVPB | 22322E1K.T41A | 23028E1TVPB |
| 23026E1AK.M | 23224E1AK.M | 22322E1K | 23232E1AK.M |
| 23026E1TVPB | 23224E1K.TVPB | 21322E1TVPB | 23232E1K.TVPB |
| 23026E1K.TVPB | 22224E1K | 21322E1K.TVPB | 222320 |
| 23324AS.MA.T41A | 222240 | 22328E1.T41A | 22232E1K |
| 23326AS.MA.T41A | 241240 | 223280 | 241320 |
| 22326E1.T41A | 24124E1K30 | 22328E1K.T41A | 24132E1K30 |
| 223260 | 23124E1A.M | 22328E1K | 23132E1A.M |
| 22326E1K.T41A | 23124E1AK.M | 23228E1A.M | 23132E1TVPB |
| 22326E1K | 23124E1TVPB | 23228E1TVPB | 23132E1AK.M |
| 23226E1A.M | 23124E1K.TVPB | 23228E1AK.M | 23132E1K.TVPB |
| 23226E1AK.M | 240240 | 23228E1K.TVPB | 240320 |
| 23226E1TVPB | 24024E1K30 | 222280 | 24032E1K30 |
| 23226E1K.TVPB | 23024E1A.M | 23128E1A.M | 23032E1A.M |
| 222260 | 23024E1AK.M | 23128E1TVPB | 23032E1AK.M |
| 22324E1.T41A | 23024E1TVPB | 23128E1K.TVPB | 23032E1TVPB |
| 223240 | 23024E1K.TVPB | 23128E1AK.M | 23032E1K.TVPB |
| 22324E1K.T41A | 23322AS.MA.T41A | 240280 | 23330A.MA.T41A |
| 22324E1K | 22322E1.T41A | 24028E1K30 | 22330E1.T41A |
