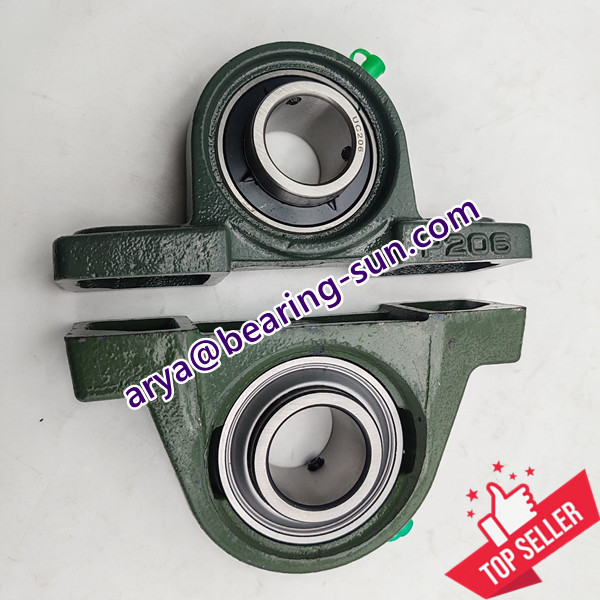

UCP206 SKF
Model No. UCP206 SKF Bore diameter 30 mm
Type : Pillow block ball bearing units
Weight: 1.26 KG
Datasheet and drawing can be offered.
Stock available for fast delivery,contact me for a quick quotation
Sales Director :arya
Email: arya@bearing-sun.com
UCP206 SKF
UCP206 ，The "UCP" in the model represents the type of pillow block bearing with a set screw locking mechanism. The "206" is a code indicating the bearing's size, with an inner diameter of 30 mm. It consists of an insert bearing (UC206) and a housing (P206). The insert bearing has an extended inner ring on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to install.
Please feel free to email me if you are interested .arya@bearing-sun.com

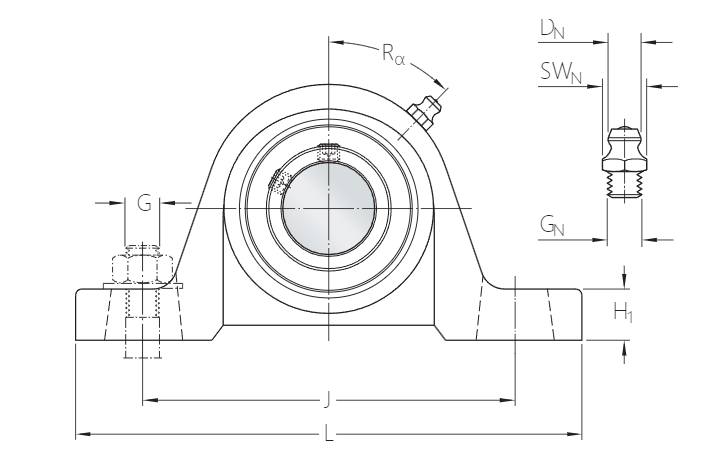

Drawing & Size
| Model No. | UCP206 SKF |
| Type | Pillow block ball bearing units |
| J | 121mm |
| L | 165 mm |
| H1 | 16.5 mm |
| Weight | 1.26 KG |
Below same series bearings are recommended
| Bearing No. | Weight (kg) | UCP | UCF | UCT | UCFL | UCPA |
| UC201 | 0.16 | UCP201 | UCF201 | UCT201 | UCFL201 | UCPA201 |
| UC202 | 0.18 | UCP202 | UCF202 | UCT202 | UCFL202 | UCPA202 |
| UC203 | 0.19 | UCP203 | UCF203 | UCT203 | UCFL203 | UCPA203 |
| UC204 | 0.21 | UCP204 | UCF204 | UCT204 | UCFL204 | UCPA204 |
| UC205 | 0.29 | UCP205 | UCF205 | UCT205 | UCFL205 | UCPA205 |
| UC206 | 0.31 | UCP206 | UCF206 | UCT206 | UCFL206 | UCPA206 |
| UC207 | 0.49 | UCP207 | UCF207 | UCT207 | UCFL207 | UCPA207 |
| UC208 | 0.63 | UCP208 | UCF208 | UCT208 | UCFL208 | UCPA208 |
| UC209 | 0.68 | UCP209 | UCF209 | UCT209 | UCFL209 | UCPA209 |
| UC210 | 0.79 | UCP210 | UCF210 | UCT210 | UCFL210 | UCPA210 |
| UC211 | 1.04 | UCP211 | UCF211 | UCT211 | UCFL211 | UCPA211 |
| UC212 | 1.47 | UCP212 | UCF212 | UCT212 | UCFL212 | UCPA212 |
| UC213 | 1.73 | UCP213 | UCF213 | UCT213 | UCFL213 | UCPA213 |
| UC214 | 2.08 | UCP214 | UCF214 | UCT214 | UCFL214 | UCPA214 |
| UC215 | 2.25 | UCP215 | UCF215 | UCT215 | UCFL215 | UCPA215 |
| UC216 | 2.86 | UCP216 | UCF216 | UCT216 | UCFL216 | UCPA216 |
| UC217 | 3.42 | UCP217 | UCF217 | UCT217 | UCFL217 | UCPA217 |
| UC218 | 4.4 | UCP218 | UCF218 | UCT218 | UCFL218 | UCPA218 |
