PRODUCT
YAR 203-010-2F SKF
Product Attributes :
Model No. YAR 203-010-2F SKF
Type : Insert ball Bearings
Size: 15.875X40X27.4mm
Weight: 0.1 KG
Datasheet and drawing can be offered.
Stock available for fast delivery,contact me for a quick quotation
Sales Director :arya
Email: arya@bearing-sun.com
Product Description
YAR 203-010-2F SKF
the YAR 203-010-2F bearing is a Y-type insert ball bearing with a shaft diameter of 15.875 mm，commonly used in various mechanical applications.
Please feel free to email me if you are interested .arya@bearing-sun.com

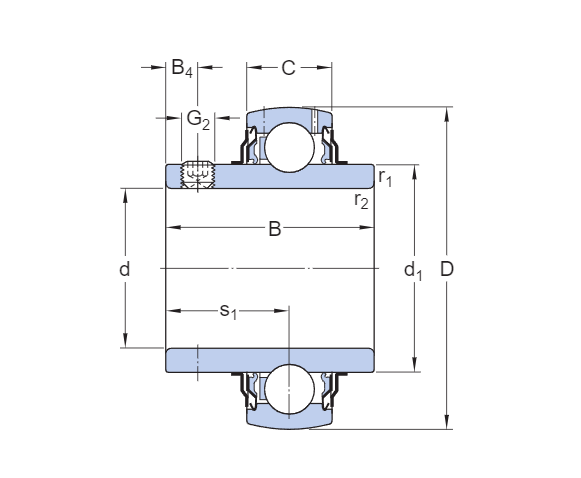

Drawing & Size
| Type | Insert ball Bearings |
| Model No. | YAR 203-010-2F SKF |
| d | 15.875 mm |
| D | 40 mm |
| B | 27.4 mm |
| Weight | 0.1 KG |
Below same series bearings are recommended
| Model No. | Outside diameter | Bore diameter | Shaft diameter |
| [mm] | [mm] | [mm] | |
| YAR 205-2DW/AG | 52 | 25 | 25 |
| YAR 205-2LPW/ZM | 52 | 25 | 25 |
| YAR 206-103-2LPW/ZM | 62 | 30.163 | 30.163 |
| YAR 206-103-2RFGR/HV | 62 | 30.163 | 30.163 |
| YAR 206-2DW/AG | 62 | 30 | 30 |
| YAR 207-104-2RF | 72 | 31.75 | 31.75 |
| YAR 207-2RF | 72 | 35 | 35 |
| YAR 207-2RF/HV | 72 | 35 | 35 |
| YAR 208-108-2LPW/ZM | 80 | 38.1 | 38.1 |
| YAR 209-112-2F | 85 | 44.45 | 44.45 |
| YAR 210-2RF/VE495 | 90 | 50 | 50 |
| YAR 210-2RFGR/HV | 90 | 50 | 50 |
| YAR 211-2RF | 100 | 55 | 55 |
| YAR 212-204-2F | 110 | 57.15 | 57.15 |
| YAR 212-2F | 110 | 60 | 60 |
| YAR 213-208-2RF | 120 | 63.5 | 63.5 |
| YAR 213-211-2F | 120 | 68.263 | 68.263 |
| YAR 215-215-2F | 130 | 74.613 | 74.613 |
| YAR 216-215-2F | 140 | 74.613 | 74.613 |
| YAT 203-008 | 40 | 12.7 | 12.7 |
| YAT 204-012 | 47 | 19.05 | 19.05 |
| YAT 207 | 72 | 35 | 35 |
| YAT 209-111 | 85 | 42.863 | 42.863 |
| YAT 211-200 | 100 | 50.8 | 50.8 |
