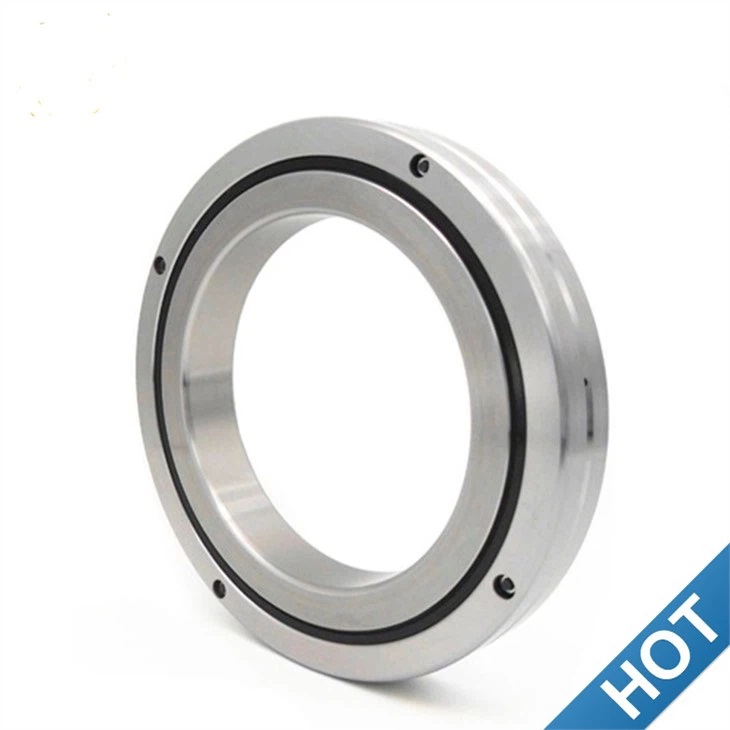

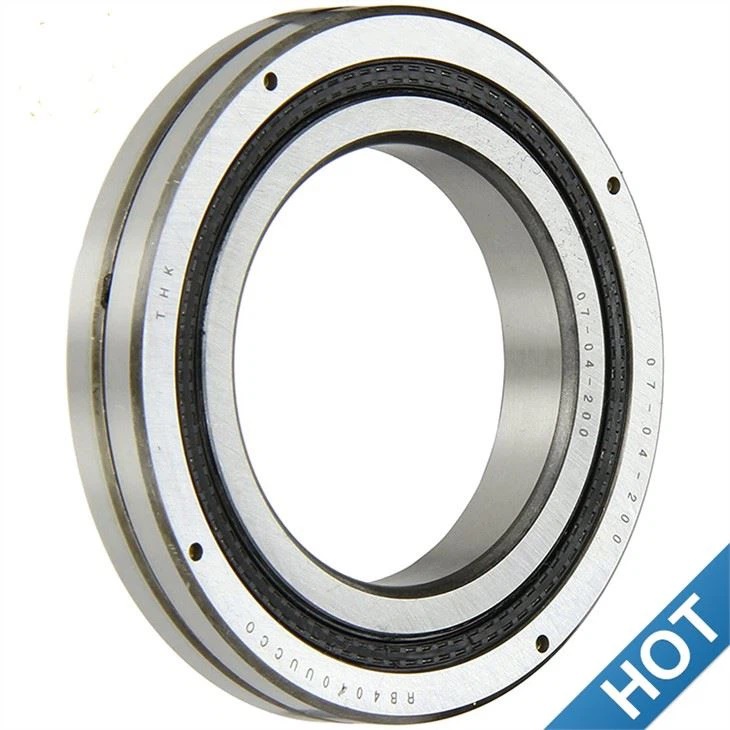

RB4010UUC0 Crossed Roller Bearing
*RB4010UUC0 Bearing
*dimensions: 40x65x10mm
*Datasheets and drawings can be offered.
*They are stock available for fast delivery.
*If you want to know more about RB4010UUC0 bearing, email: alita@bearing-sun.com
RB4010UUC0 is RB series crossed roller bearing. This series is the basic type of crossed cylindrical roller bearing. The size of the inner and outer rings is minimized. Its structure is that the outer ring is the split type and the inner ring is an integral design, which is suitable for the parts that require high rotation accuracy of the inner ring.
Data sheet and drawing for RB4010UUC0 bearing:
|
Type |
Cross roller bearing |
|
Model |
RB4010UUC0 |
|
bore |
40 mm |
|
outer diameter |
65 mm |
|
width |
10 mm |
| shoulder height ds(max) | 46.5 mm |
| shoulder height Dh(min) | 57.5 mm |
| Basic dynamic load rating | 8.33 kN |
| Basic static load rating |
10.6 kN |
|
Mass |
0.16 kg |
Application of cross roller bearing:
It is suitable for joint rotating parts of industrial robots, rotary tables of machining centers, precision rotary tables, medical equipment, calculators, IC manufacturing equipment, and other equipment.
Below are some similar part numbers in stock.
RB4010UUCC0、RB4510UUCC0、RB5013UUCC0、RB6013UUCC0、RB7013UUCC0、RB8016UUCC0、RB9016UUCC0、RB10016UUCC0、RB10020UUCC0、RB11012UUCC0、RB11015UUCC0、RB11020UUCC0、RB12016UUCC0、RB12025UUCC0、RB13015UUCC0、RB13025UUCC0、RB14016UUCC0、RB14025UUCC0、RB15013UUCC0、RB15025UUCC0、RB15030UUCC0、RB16025UUCC0、RB17020UUCC0、RB18025UUCC0、RB19025UUCC0、RB20025UUCC0、RB20030UUCC0、RB20035UUCC0、RB22025UUCC0、RB24025UUCC0、RB25025UUCC0、RB25030UUCC0、RB25040UUCC0、RB30025UUCC0、RB30035UUCC0、RB30040UUCC0、RB35020UUCC0、RB40035UUCC0、RB40040UUCC0、RB45025UUCC0、RB50025UUCC0、RB50040UUCC0、RB50050UUCC0、RB60040UUCC0、RB70045UUCC0、RB80070UUCC0、RB90070UUCC0、RB1000110UUCC0、RB1250110UUCC0
