580XRN76 Crossed Roller Bearing
580XRN76 Bearing
dimensions: 580x760x80mm
Datasheets and drawings can be offered.
They are stock available for fast delivery.
If you want to know more about 580XRN76 bearing, email: alita@bearing-sun.com

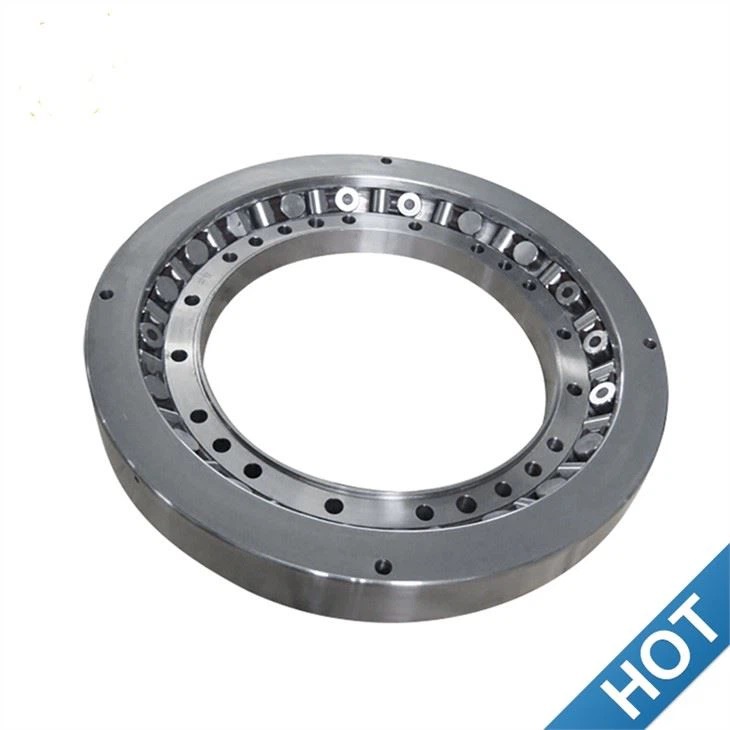

580XRN76 is crossed tapered roller bearing. Cross-tapered roller bearings have two sets of raceways and rollers, which are combined at right angles, and the rollers are staggered and opposite. The cross-sectional height of the bearing is similar to that of a single-row approach, thus saving space and housing material.
Data sheet and drawing for 580XRN76 bearing:
|
Type |
Cross roller bearing |
|
Model |
580XRN76 |
|
bore |
580 mm |
|
outer diameter |
760 mm |
|
width |
80 mm |
| Radial dynamic load rating | 106 kN |
| Reference speed | 170 r/min |
| Limiting speed | 340 r/min |
|
Mass |
100 kg |
Application of cross roller bearing:
They are widely used in gantry milling machines, petroleum equipment, thread rolling machine punches, mining construction equipment, medical and health care, automobile and heavy truck, casting and heat treatment equipment, industrial transmission, crushing equipment, compression equipment, and other fields.
Below are some similar part numbers in stock.
XR496051,XR678052(PSL912-309A),XR766051(PSL912-308A),XR820060(PSL912-305A),XR855053(PSL912-305A),XR882055(PSL912-306A),XR889058(PSL912-307A),XR897051,JXR637050,JXR652050,JXR699050，616093A，615661A，300XRN50，615894A，0457XRN060XD.10.0457P5，615662A，580XRN76，XD.10.0580P5，615659A，0685XRN091，XD.10.0686P5，615895A，0901XRN112，XD.10.0902P5，BFKB353282/HA4，1028XRN132，XD.10.1029P5，615898A，XD.10.1549P5
If you want to know other part numbers, please inquire.
