PRODUCT

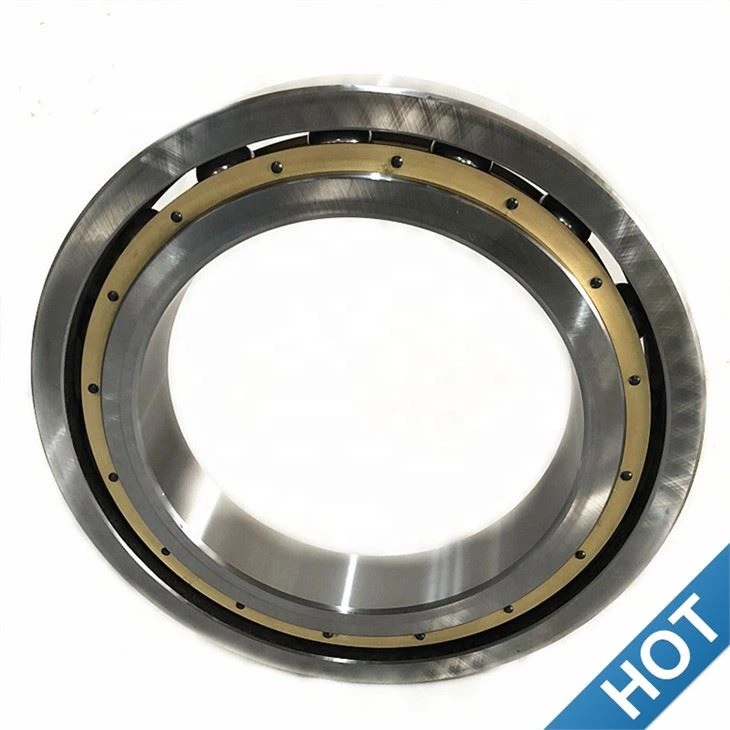

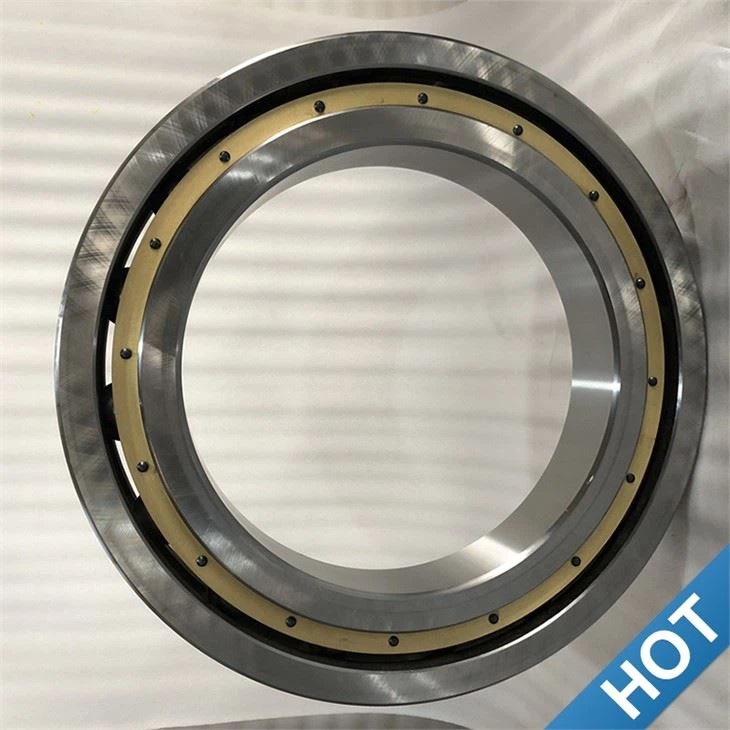

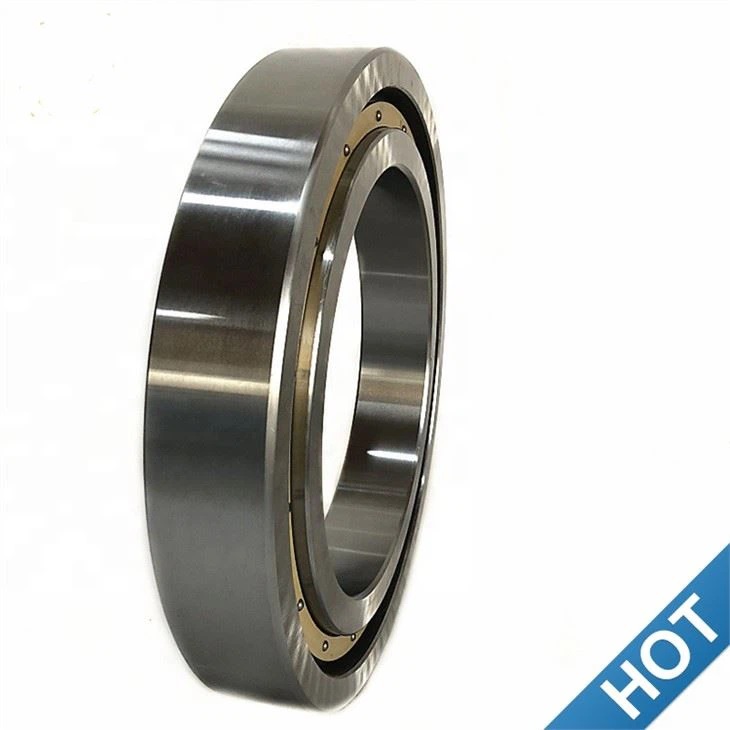

6080 M Deep Groove Ball Bearing
*6080 M Bearing
*Dimensions: 400x600x90mm
*Weight: 87.5KG
*Datasheets and drawings can be offered.
*They are stock available for fast delivery.
*If you want to know more about 6080 M bearing, email: alita@bearing-sun.com
6048 M is an open-type deep groove ball bearing. It has a brass cage. It is an original brand made in Germany. A certificate of origin can be offered after the order is confirmed.
Data sheet and drawing for bearing 6080 M:
|
Type |
Deep groove ball bearing |
|
Model |
6080 M |
|
Inside diameter (d) |
400 mm |
|
Outer diameter (D) |
600 mm |
|
Width (B) |
90 mm |
| D1 | 536.2 mm |
| d1 | 463.8 mm |
| Basic dynamic load rating |
520 kN |
| Basic static load rating | 865 kN |
| Fatigue load limit | 16.3 kN |
| Reference speed | 2000 r/min |
| Limiting speed | 1700 r/min |
|
Mass |
87.5 kg |
Application for deep groove ball bearings:
This bearing is mainly used in plastic molding machines, drum scraper dryers, capsule filling machines, foaming equipment, closed cooling towers, weaving machines, box drying equipment, metallurgy, horizontal pump, blow molding machines, etc.
Below are some similar part numbers for your reference.
| 618/900-MA | FAG | 900x1090x85 |
| 6201-2RSR | FAG | 12x32x10 |
| 6032-M | FAG | 160x240x38 |
| 6030-2RSR | FAG | 150x225x35 |
| 6015-M | FAG | 75x115x20 |
| 4303-BB-TVH | FAG | 17x47x19 |
| 6056-M | FAG | 280x420x65 |
| 6044-M | FAG | 220x340x56 |
| 6036-M | FAG | 180x280x46 |
| 6034-M | FAG | 170x260x42 |
| 6040-M | FAG | 200x310x51 |
| 6052-M | FAG | 260x400x65 |
| 6060-M | FAG | 300x460x74 |
| 62309-2RSR | FAG | 45x100x36 |
| 62310-2RSR | FAG | 50x110x40 |
| 6311 | FAG | 55x120x29 |
| 61822-2RZ-Y | FAG | 110x140x16 |
| 61808-2Z | FAG | 40x52x7 |
| 61844 | FAG | 220x270x24 |
| 61856 | FAG | 280x350x33 |
| 61817-2RSR-Y | FAG | 85x110x13 |
| 61819-2RSR-Y | FAG | 95x120x13 |
| 618/530-M | FAG | 530x650x56 |
| 618/710-M | FAG | 710x870x74 |
| 618/750-M | FAG | 750x920x78 |
| 6048-M | FAG | 240x360x56 |
| 62211-2RSR | FAG | 55x100x25 |
| 62212-2RSR | FAG | 60x110x28 |
| 6309 | FAG | 45x100x25 |
| 6240-M | FAG | 200x360x58 |
If you want to know about other part numbers, please send us an inquiry below.
