PRODUCT

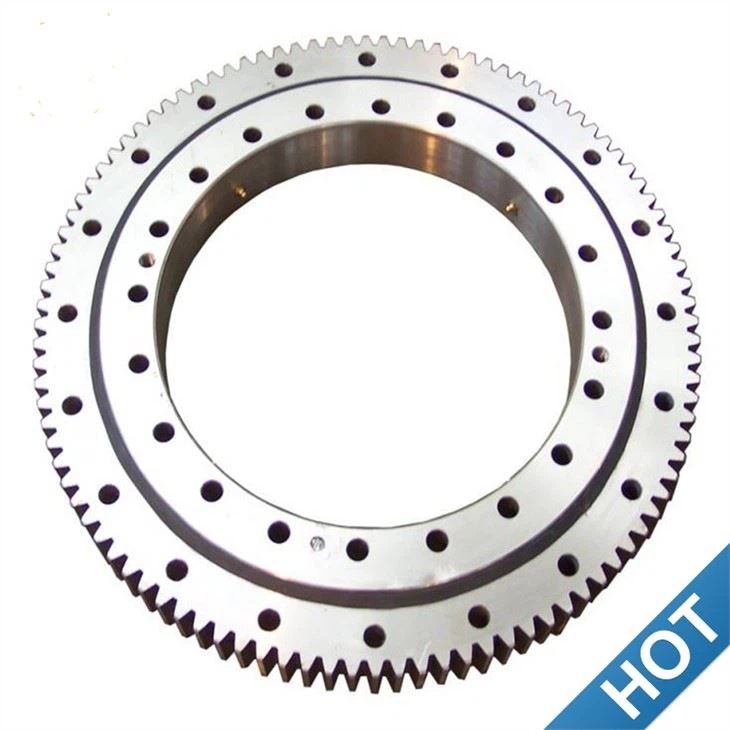

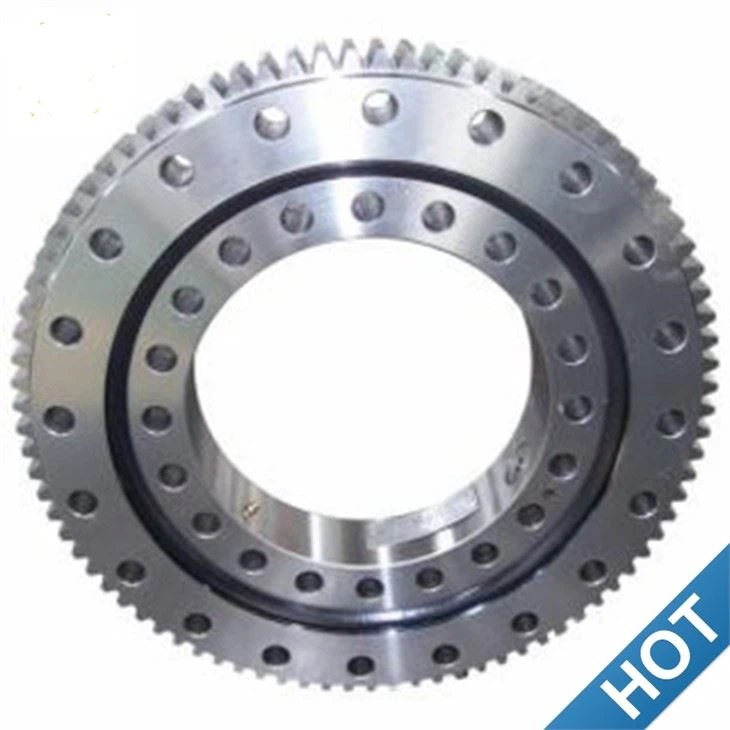

VLA201094-N Bearing
*VLA201094-N Bearing
*dimensions: 1198.1x1097x56mm
*Datasheets and drawings can be offered.
*They are stock available for fast delivery.
*If you want to know more about VLA201094-N bearing, email: alita@bearing-sun.com
Features of slewing bearing:
1. High precision: Cross roller bearings can be made high precision bearings, at P4, and P2.
2. High rigidity: These series roller bearings are with preload.
3. High load capacity: This series roller bearing can support axial load, radial load, and tilting load.
4. Small volume: This series roller bearing can save space for the machine.
Data sheet and drawing for VLA201094-N bearing:
|
Type |
Slewing ring bearing |
|
Model |
VLA201094-N |
|
di |
984 mm |
|
Da |
1198.1 mm |
|
Di |
1095.5 mm |
|
H |
56 mm |
|
La |
1135 mm |
| Li | 1012 mm |
| m | 8 mm |
| na | 22 mm |
| ni | 20 mm |
| z | 148 mm |
|
Mass |
83.5 kg |
Applications of slewing bearing:
Slewing bearings have a wide range of applications. Construction machinery is the first and most widely used place for slewing bearings, such as earthmoving machinery, excavators, dismantling machines, stackers and reclaimers, graders, road rollers, dynamic compactors, rock drilling machines, road headers, etc.
