PRODUCT

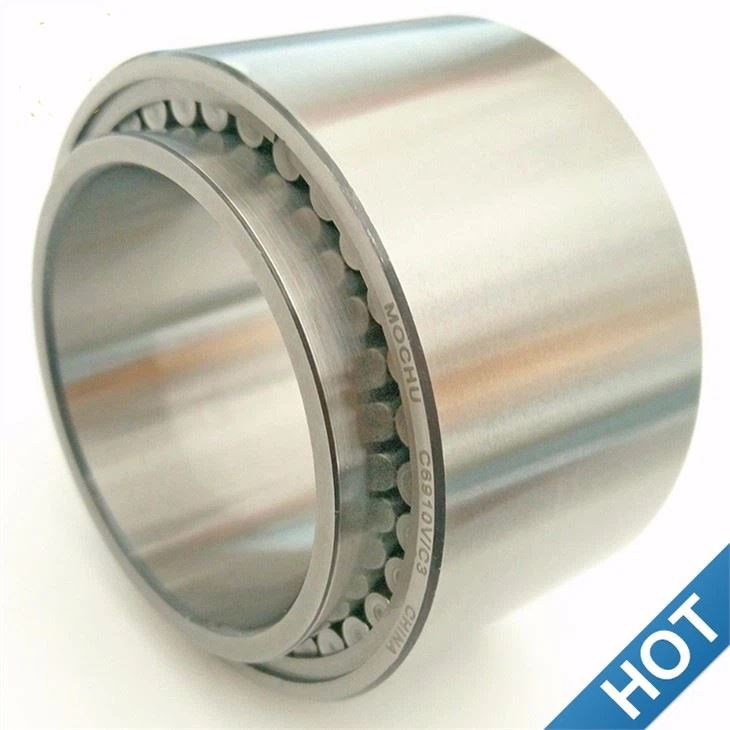

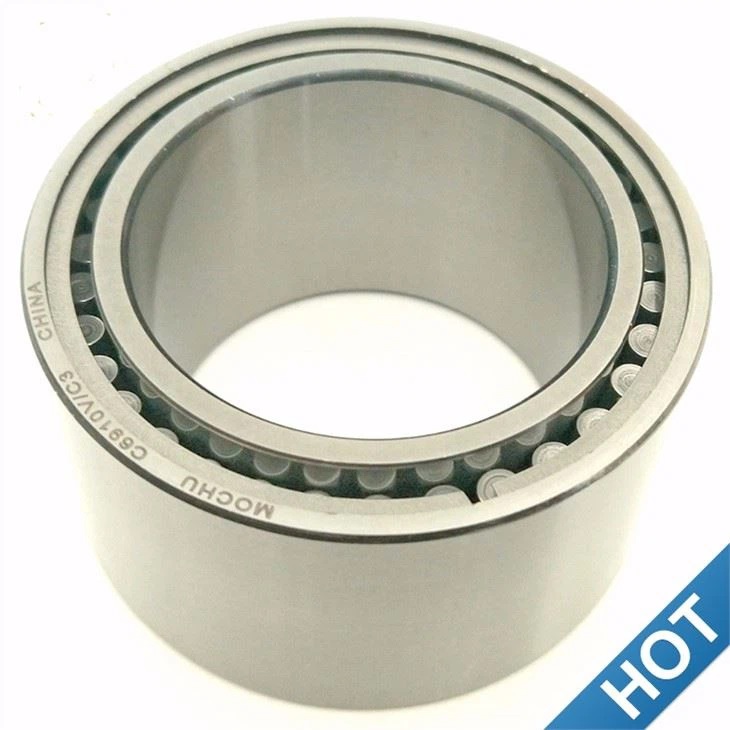

C 6910 V CARB Bearing
C 6910 V Bearing
Dimensions: 50x72x40mm
Weight: 0.54KG
Datasheets and drawings can be offered.
They are stock available for fast delivery.
If you want to know more about C 6910 V bearing, email: alita@bearing-sun.com
C 6910 V is a full complement CARB Toroidal Roller Bearing. The design of the CARB roller bearing is unique, combining the self-modulating heart capacity of the spherical roller bearings and the infinite axis displacement capacity of the cylindrical roller bearings.
Data sheet and drawing for C 6910 V bearing:
|
Type |
CARB toroidal roller bearing |
|
Model |
C 6910 V |
|
d |
50 mm |
|
D |
72 mm |
|
B |
40 mm |
|
d2 |
57.5 mm |
|
D1 |
65 mm |
|
S1 max |
9.4 mm |
|
Basic dynamic load rating(C) |
140 kN |
|
Basic static load rating(C0) |
224 kN |
|
Fatigue load limit |
26 kN |
|
Limiting speed |
2400 r/min |
|
Mass |
0.54 kg |
Application for CARB bearing:
They are mainly used on papermaking machines, plus casting machines, gravel machines, grinders, industrial transmission, conveyor belts, textile machines, and other mechanical equipment.
Below are some similar part numbers for your reference.
| C3172KM | C3096M | C31/500KM+OH31/500H |
| C31/1000KMB+AOH31/1000 | C3076M | C39/800KM+OH39/800HE |
| C2209KTN9 | C31/560KMB+AOH31/560 | C4192K30M+AOH24192 |
| C3064KM | C4026 | C4010K30V |
| C4140V | C30/530KM/HA3C4 | C3022K |
| C3044 | C2217KV+H317 | C30/530KM+OH30/530H |
| C4122-2CS5V | C2205V | C4015V |
| C2206TN9 | C3172M | C2217 |
| C4036K30V | C4032K30 | C3224 |
| C3068M | C3040K | C40/710K30M |
| C6913V | C4015K30V | C39/800MB |
| C3196KMB+AOHX3196G | C30/710KM+OH30/710H | C4192M |
| C2319K+H2319 | C30/670KM+OH30/670H | C31/850MB |
| C4120K30V/VE240 | C39/800KMB | C39/630KM+OH39/630HE |
| C3044K+OH3044H | C4120V/VE240 | C3080KM+AOH3080G |
| C3132MB | C2228K+AHX3128 | C3030KMB+H3030E |
| C4015-2CS5V | C30/850MB | C39/670KM+OH39/670H |
| C3026 | C39/950KMB | C3976KM |
| C4026-2CS5V | C3024K | C3996M |
| C2211KTN9 | C3988KM+OH3988HE | C3040K+AH3040G |
| C3034 | C4024K30V+AH24024 | C3196KMB+OH3196HE |
| C3172KM+OH3172H | C3034K | C3188KMB+AOHX3188G |
| C39/1060MB | C3028K | C39/560M |
| C4026V | C5918-2CS5V | C3024V |
| C4120-2CS5V | C4044V | C39/850KM |
| C4917V | C30/950KMB | C3168KM+OH3168H |
| C2213KTN9 | C2212KV | C4032K30+AH24032 |
| C2220 | C4034V | C2214KTN9+H314E |
| C2317 | C3196MB | C4918V |
| C3136K+AH3136G | C4908K30V | C4912V |
If you want to know others, please send us an inquiry by email: alita@bearing-sun.com
