C 2220 KC3 Bearing
C 2220 KC3 Bearing
Dimensions: 100x180x46mm
Weight: 4.8KG
Datasheets and drawings can be offered.
They are stock available for fast delivery.
If you want to know more about C 2220 KC3 bearing, email: alita@bearing-sun.com
CARB toroidal roller bearings combine the self-aligning capability of spherical roller bearings with the axial displacement ability of cylindrical roller bearings.
CARB bearings can also have the compact cross section and high load-carrying capacity normally associated with needle roller bearings.
CARB bearings are intended exclusively as non-locating bearings. They can simplify the bearing arrangement design for shafts that are subjected to thermal expansion/contraction because axial displacement is accommodated within the bearing, virtually without friction
Data sheet and drawing for C 2220 KC3 bearing:
|
Type |
CARB toroidal roller bearing |
|
Model |
C 2220 KC3 |
|
d |
100 mm |
|
D |
180 mm |
|
B |
46 mm |
|
d2 |
118 mm |
|
D1 |
157 mm |
|
S1 max |
10.1 mm |
|
taper |
1:12 |
|
Da min |
146 mm |
| Da max | 168 mm |
|
Ca min |
0.9 mm |
|
Basic dynamic load rating(C) |
415 kN |
|
Basic static load rating(C0) |
465 kN |
|
Fatigue load limit |
49 kN |
| Reference speed | 3600 r/min |
|
Limiting speed |
4800 r/min |
|
Mass |
4.8 kg |

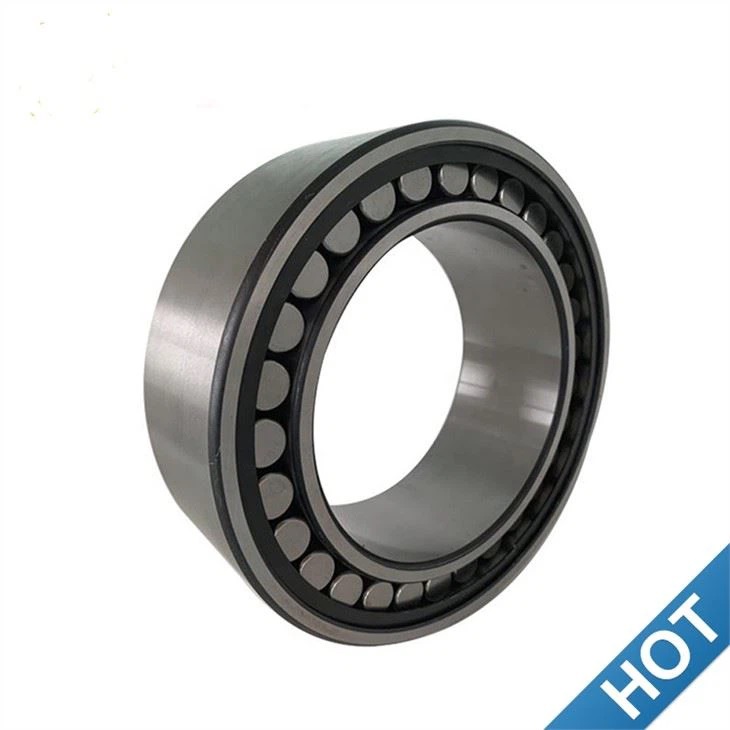

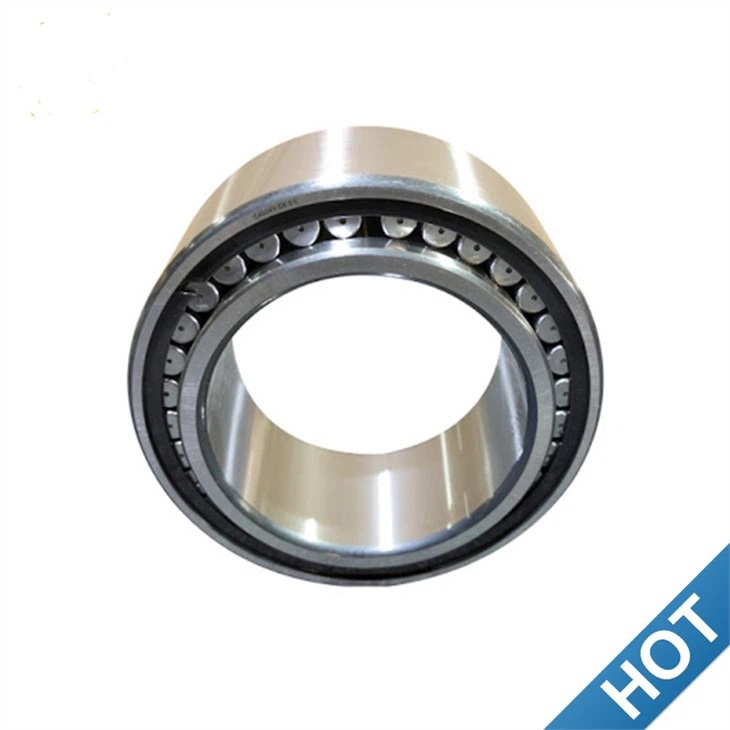

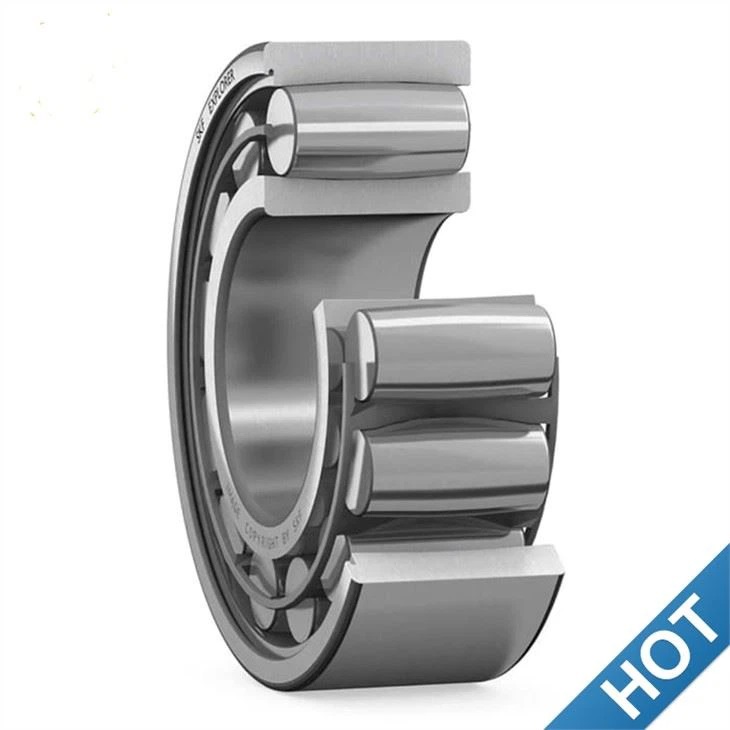

Picture of C 2220 KC3 bearing:
