SNL 3156 Bearing Housing
SNL 3156 Bearing Housing SNL 3156 Bearing Housing SNL 3156 Bearing Housing

SNL 3156 Bearing Housing

Product ID : 3156
Product Attributes :

SNL 3156 Bearing Housing
Dimensions: 260x551x790mm
Weight:252KG
Datasheets and drawings can be offered.
They are stock available for fast delivery.
If you want to know more about SNL 3156 bearing housing, email: alita@bearing-sun.com

Product Description

SNL 3156 is composed of several products. You can order them seperately.

Its bearing part number is 23156 CCK/W33.

Its adapter sleeve is OH 3156H
Locating ring is 2xFRB 10/460

End cover is ETS56



Data sheet and drawing for SNL 3156 bearing housing:



SNL 3156 drawing



Type

Plummer block bearing housing

Model

SNL 3156

da

260 mm

Ca 166 mm
Da 460 mm
H 551 mm
J 670 mm
J1 160 mm
L 790 mm

N

50 mm

s

16 mm

Mass

252 kg



Application for bearing housing:



Mainly used in vibration motors, food and beverages, automation, deep -hole drilling machines, agricultural machinery, printing equipment, grinding machines, casting and heat treatment equipment, etc.

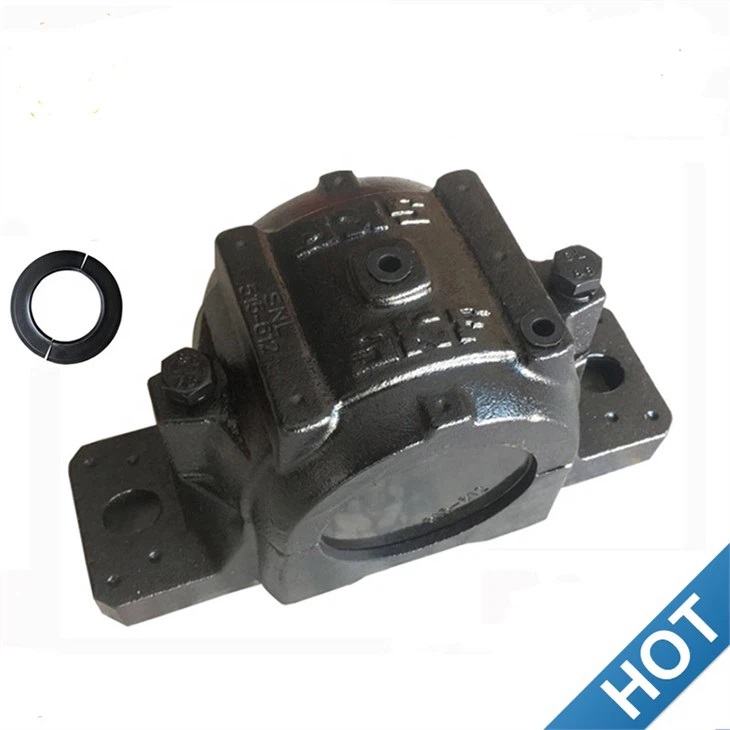

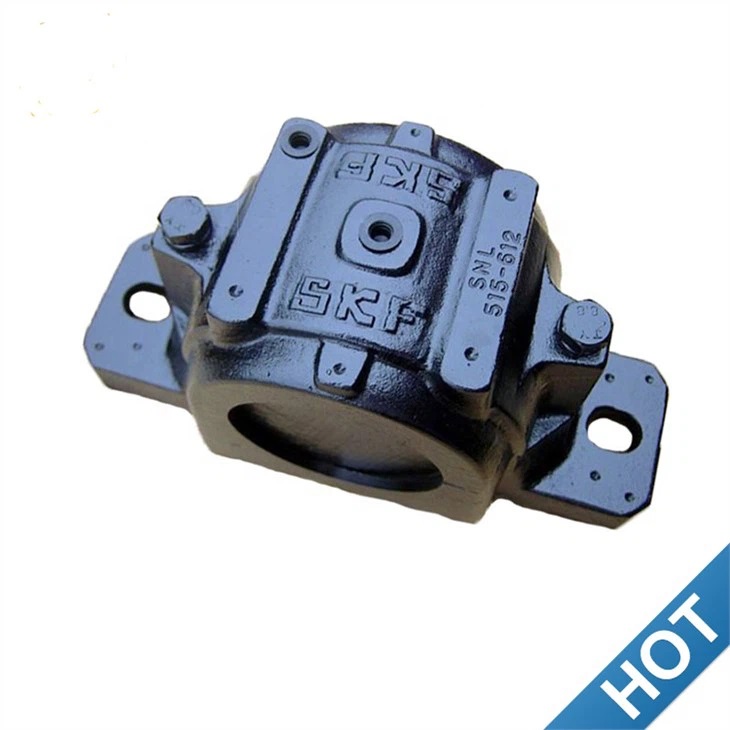

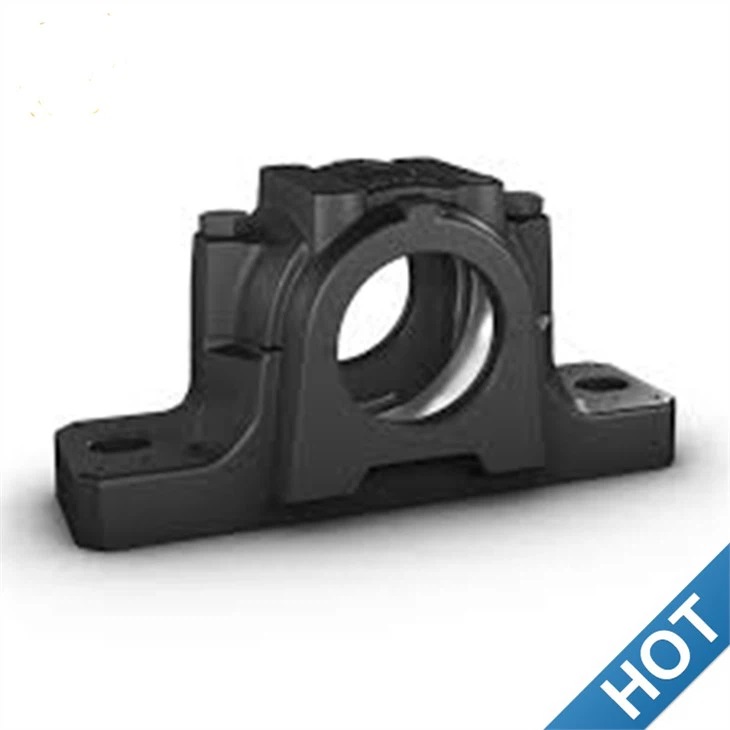

Picture of SNL 3156 bearing housing:



SNL 3156 picture



Bearing shipment packages:



For shipment,we use strong wooden boxes,avoiding damage to the bearings. Below is our shipment pictures for bearing housing.

bearing package



Feedback for bearing housing:



The bearing housings are sold to all countries all over the world. Below is the feedback from the Saudi Arabia customer.



feedback for bearing housing

Below are some part numbers in stock for bearing housing.



SNL3156TURT SNL3176GL SNL3140G SNL3152
SNL3180F SNL3096GF SNL3134TURT SNL3144TURT
SNL3048 SNL3256 SNL3248G SNL3048TURT
SNL3056 SNL3188GL SNL3276F SNL3136G
SNL3140TURT SNL3044 SNL3196L SNL3172FTURT
SNL3060 SNL3072G SNL3140/7.3/16TURT SNL3088L
SNL3138 SNL3252 SNL30/500L SNL3268GL
SNL3196GL SNL3084GF SNL3038 SNL3068
SNL3076/13.15/16LTURT SNL3052G SNL30/530GF SNL3168LTURT
SNL4088GF SNL3272GL SNL230/530LTURT SNL3138G
SNL3088FTURT SNL3164 SNL4076GF SNL3176F
SNL3156G SNL3188LTURT SNL3172GF SNL3134G
SNL3080GF SNL4088GL SNL4080GL SNL3168L
SNL3096L SNL3252G SNL3096GL SNL3180GL
SNL3188FTURT SNL3152/9.7/16TURT SNL3080LTURT SNL3184FTURT
SNL3134 SNL3176FTURT SNL3272L SNL4084GL
SNL3064/11.15/16TURT SNL3052TURT SNL3284L SNL3288L
SNL3096F SNL3288GF SNL3038/6.15/16TURT SNL40/530GL
SNL3056TURT SNL3092GL SNL3264GL SNL3072/13.7/16TURT
SNL3068/12.7/16TURT SNL3044G SNL3092GF SNL3092L
SNL3040G SNL3234 SNL3076L SNL3088GF
SNL4084GF SNL3076GF SNL3268F SNL3168GF
SNL3244G SNL3060TURT SNL3036TURT SNL3080GL
SNL3036 SNL40/500GF SNL3176LTURT SNL30/500F
SNL3192GL SNL3176L SNL40/530GF SNL3244
SNL4092GF SNL3080L SNL3096LTURT SNL3284GF
SNL4096GL SNL3260 SNL3068G SNL3076GL
SNL30/530F SNL3056/10.7/16TURT SNL3192F SNL3088F
SNL3064G SNL3036/6.7/16TURT SNL3264F SNL3188F
SNL3236 SNL3084GL SNL3148TURT SNL3280F
