PRODUCT

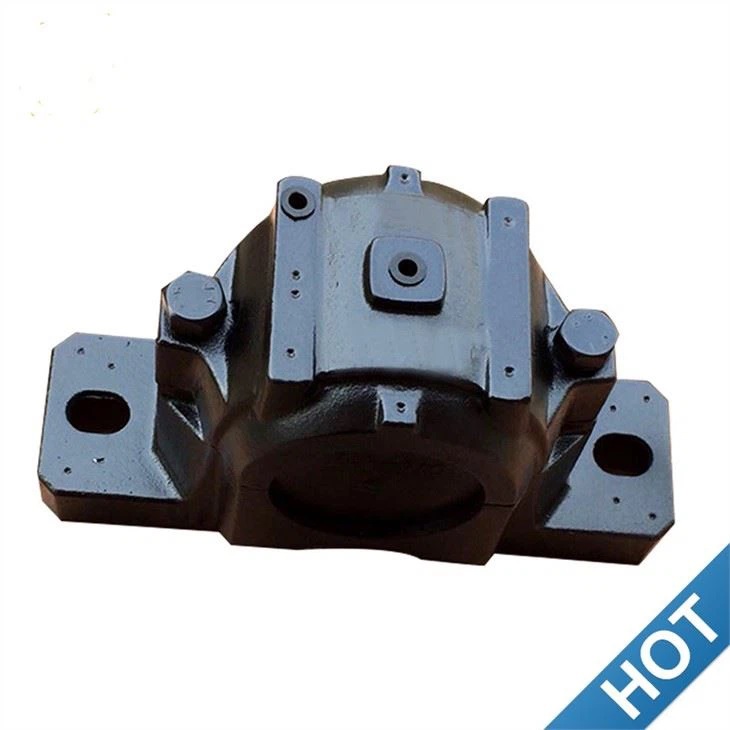

SNL 3036 Plummer Block Bearing
SNL 3036 Bearing Housing
Dimensions: 163.513x333x510mm
Weight：69.5KG
Datasheets and drawings can be offered.
They are stock available for fast delivery.
If you want to know more about SNL 3036 bearing housing, email: alita@bearing-sun.com
SNL 3036 is composed of several products. You can order them separately.
Its bearing part number is C 3036 K.
Its adapter sleeve is HA3036
Locating ring is 2xFRB 17/280
The end cover is ETS36
Data sheet and drawing for SNL 3036 bearing housing:
|
Type |
Plummer block-bearing housing |
|
Model |
SNL 3036 |
|
da |
163.513 mm |
| Ca | 108 mm |
| Da | 280 mm |
| H | 333 mm |
| J | 430 mm |
| J1 | 100 mm |
| L | 510 mm |
|
N |
34 mm |
|
s |
14 mm |
|
Mass |
69.5 kg |
Application for bearing housing:
Mainly used in medical equipment, electric welding, cutting equipment, special CNC machine tools, water-cooled freezer, high-temperature fans, equipment-making machinery, open cold water machine, conveyor, drilling machines, gear machines tools, commercial super equipment, semiconductor, whole ironing Washing equipment, handling technology, agricultural machinery, hydraulic machinery, air compressor, screw compressor, filtering equipment, and other fields.
Below are some part numbers in stock for bearing housing.
| SNL3280GL | SNL3244G | SNL3060TURT |
| SNL3184GL | SNL3036 | SNL40/500GF |
| SNL3192LTURT | SNL3192GL | SNL3176L |
| SNL3284F | SNL4092GF | SNL3080L |
| SNL3040TURT | SNL4096GL | SNL3260 |
| SNL3172LTURT | SNL30/530F | SNL3056/10.7/16TURT |
| SNL30/530GL | SNL3064G | SNL3036/6.7/16TURT |
| SNL3052 | SNL3236 | SNL3084GL |
| SNL3156TURT | SNL3176GL | SNL3140G |
| SNL3180F | SNL3096GF | SNL3134TURT |
| SNL3048 | SNL3256 | SNL3248G |
| SNL3056 | SNL3188GL | SNL3276F |
| SNL3140TURT | SNL3044 | SNL3196L |
| SNL3060 | SNL3072G | SNL3140/7.3/16TURT |
| SNL3138 | SNL3252 | SNL30/500L |
| SNL3196GL | SNL3084GF | SNL3038 |
| SNL3076/13.15/16LTURT | SNL3052G | SNL30/530GF |
| SNL4088GF | SNL3272GL | SNL230/530LTURT |
| SNL3088FTURT | SNL3164 | SNL4076GF |
| SNL3156G | SNL3188LTURT | SNL3172GF |
| SNL3080GF | SNL4088GL | SNL4080GL |
| SNL3096L | SNL3252G | SNL3096GL |
| SNL3188FTURT | SNL3152/9.7/16TURT | SNL3080LTURT |
| SNL3134 | SNL3176FTURT | SNL3272L |
| SNL3064/11.15/16TURT | SNL3052TURT | SNL3284L |
| SNL3096F | SNL3288GF | SNL3038/6.15/16TURT |
| SNL3056TURT | SNL3092GL | SNL3264GL |
| SNL3068/12.7/16TURT | SNL3044G | SNL3092GF |
| SNL3040G | SNL3234 | SNL3076L |
| SNL4084GF | SNL3076GF | SNL3268F |
If you want to know more about bearing housing, please send us an inquiry below.
