2215 KC3 Bearing
2215 KC3 Bearing
Dimensions: 75x130x31mm
Weight：1.27KG
Data-sheet and drawings can be offered.
They are stock available for fast delivery.
If you want to know more about 2215 KC3 bearing, email: alita@bearing-sun.com
Applications of Self-Aligning Ball Bearings
Self-aligning ball bearings are used for commercial ground shafting applications.
Since axial load capacity is limited, self-aligning ball bearings are not suitable for applications with heavy axial loads.
Furthermore, if an adapter is used on the tapered bore of the inner diameter, installation and disassembly are much simpler and for this reason adapters are often used on equipment with drive shafts.
Data sheet and drawing for 2215 KC3 bearing:
|
Type |
Self-aligning ball bearing |
|
Model |
2215 KC3 |
|
Inner d |
75 mm |
|
Outer D |
130 mm |
|
Width B |
31 mm |
|
d1 |
93.3 mm |
|
D1 |
113.8 mm |
| Sleeve | H315 |
| Basic dynamic load rating | 43.8 kN |
| Basic static load rating | 17.8 kN |
| Reference speed | 5600 r/min |
| Limiting speed | 6300 r/min |
|
Mass |
1.27 kg |
Features of Self-aligning ball bearings:
1. Accommodate static and dynamic misalignment
2. Excellent high-speed performance
4. Minimum maintenance
5. Low friction
6. Excellent light load performance
7. Low noise

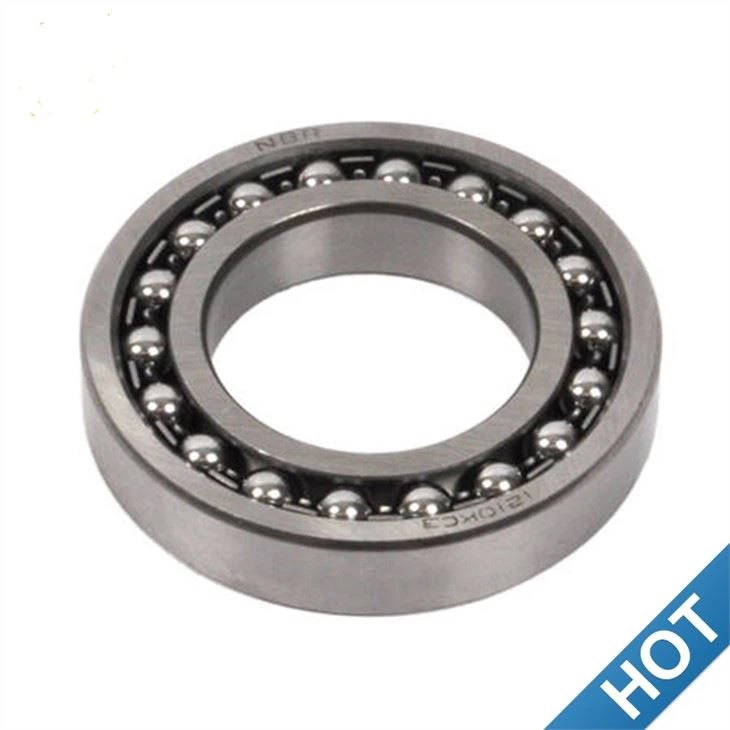

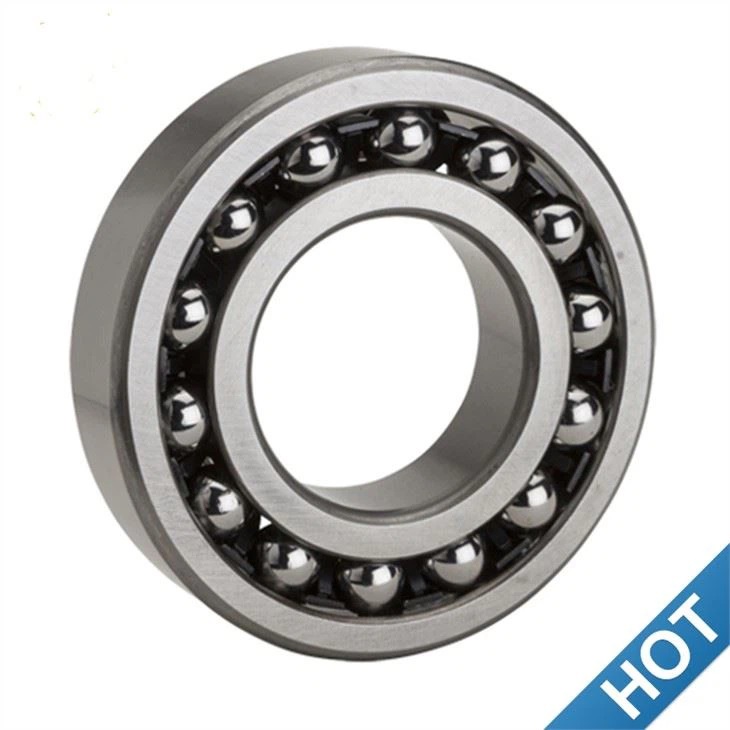

Picture of 2215 KC3 bearing:
