PRODUCT
NKX60-Z-XL INA
Product Attributes :
Model No. NKX60-Z-XL INA
Type : Needle Roller Bearings
Size: 60x72x40mm
Weight: 0.46 KG
Datasheet and drawing can be offered.
Stock available for fast delivery,contact me for a quick quotation
Sales Director :arya
Email: arya@bearing-sun.com
Product Description
NKX60-Z-XL INA
NKX60-Z-XL is a Needle roller/axial ball bearings single direction, also known as NKX60-Z
Please feel free to email me if you are interested .arya@bearing-sun.com

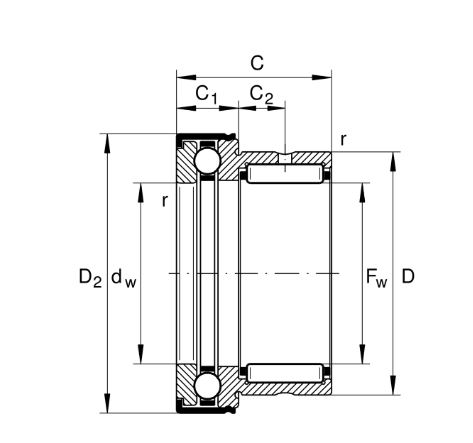

Drawing & Size
| Model No. | NKX60-Z-XL INA |
| Type | Needle Roller Bearings |
| Fw | 60 mm |
| D | 72 mm |
| C | 40 mm |
| Weight | 0.46 KG |
Below same series bearings are recommended
| Bearing No . | Fw Diameter under rollers |
D Outside diameter |
C Width |
| [mm] | [mm] | [mm] | |
| NKIA 5902 | 15 | 28 | 18 |
| NKIA 5909 | 45 | 68 | 30 |
| NKIA 5914 | 70 | 100 | 40 |
| NKIB 5904 | 20 | 37 | 25 |
| NKIB 5907 | 35 | 55 | 30 |
| NKIB 5909 | 45 | 68 | 34 |
| NKX 12 Z | 12 | 21 | 23 |
| NKX 15 Z | 15 | 24 | 23 |
| NKX 40 | 40 | 52 | 32 |
| NKX 70 Z | 70 | 85 | 40 |
| NKXR 17 Z | 17 | 26 | 25 |
| NKXR 20 | 20 | 30 | 30 |
| NKXR 35 Z | 35 | 47 | 30 |
| NKXR 40 | 40 | 52 | 32 |
| NKXR 40 Z | 40 | 52 | 32 |
| NKXR 50 Z | 50 | 62 | 35 |
| NX 10 | 10 | 19 | 18 |
| NX 15 Z | 15 | 24 | 28 |
| NX 17 Z | 17 | 26 | 28 |
| NX 30 | 30 | 42 | 30 |
| NKIA 5901 | 12 | 24 | 16 |
| NKIA 5907 | 35 | 55 | 27 |
| NKIA 5910 | 50 | 72 | 30 |
| NKIB 5901 | 12 | 24 | 17.5 |
| NKIB 5905 | 25 | 42 | 25 |
| NKX 10 ZTN | 10 | 19 | 23 |
| NKX 60 | 60 | 72 | 40 |
| NKX 60 Z | 60 | 72 | 40 |
| NKXR 25 | 25 | 37 | 30 |
| NKXR 25 Z | 25 | 37 | 30 |
| NKXR 45 Z | 45 | 58 | 32 |
| NX 12 | 12 | 21 | 18 |
| NX 12 Z | 12 | 21 | 18 |
| NX 20 | 20 | 30 | 28 |
| NX 20 Z | 20 | 30 | 28 |
| NX 7 TN | 7 | 14 | 18 |
| NKIA 5904 | 20 | 37 | 23 |
| NKIA 5905 | 25 | 42 | 23 |
| NKIA 5912 | 60 | 85 | 34 |
| NKIB 5902 | 15 | 28 | 20 |
| NKIB 5906 | 30 | 47 | 25 |
| NKIB 5914 | 70 | 100 | 45 |
| NKX 10 TN | 10 | 19 | 23 |
| NKX 12 | 12 | 21 | 23 |
| NKX 15 | 15 | 24 | 23 |
| NKX 17 Z | 17 | 26 | 25 |
| NKX 20 Z | 20 | 30 | 30 |
| NKX 25 Z | 25 | 37 | 30 |
