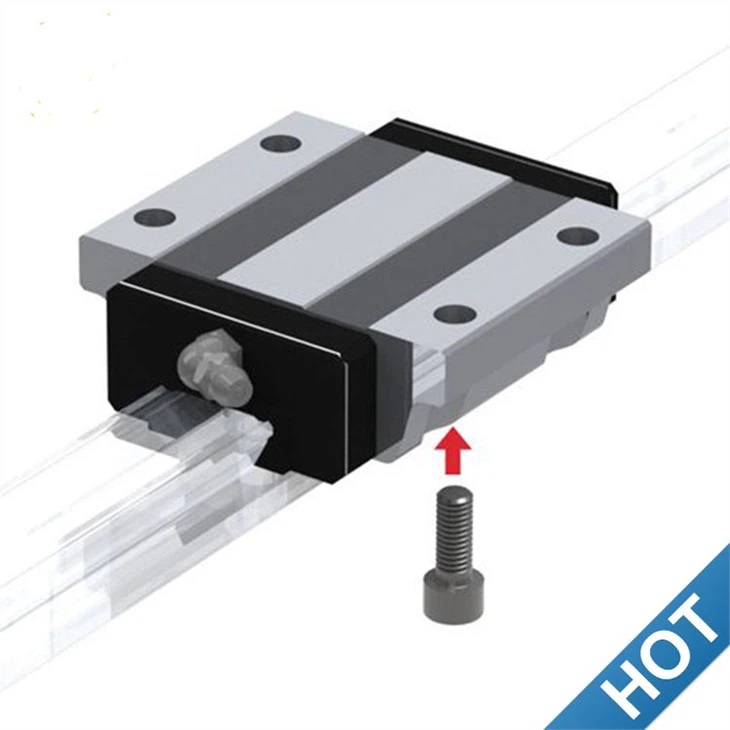

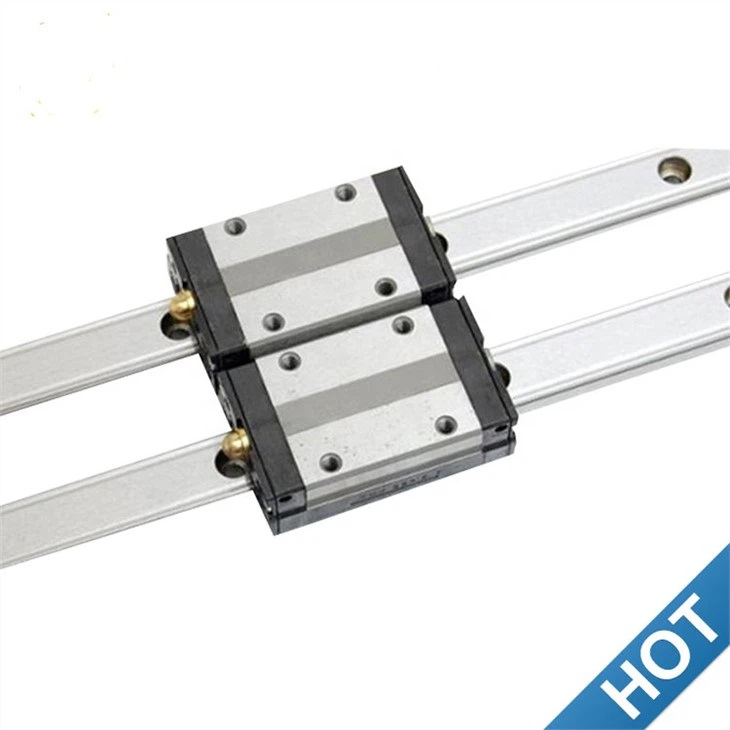

SNR35R Linear Block

Advantages of roller linear guide

1. Integral rack guide rail: linear guide rail, straight or helical teeth can be cut directly on the guide rail; in this case, there is no need to design a set of gear drive systems.

2. High adaptability to harsh production environment: The V-shaped roller can scrape dust, chips, and other impurities from the surface of the V-shaped guide through "scraping" movement, and keep the surface of the V-shaped guide clean, so it is very suitable for Use in the environment.

Technical drawing for SNR35R Bearing:

Technical data for linear guide SNR30R:

Features of linear guide SNR35R:

1. Faster linear speed: V-shaped rollers rolling on the V-shaped guide rail surface can reach very high linear speeds.

2. Reduce the accuracy requirements of the installation datum: In the V-rail rack drive system, the contact between the V-shaped roller and the V-rail surface is only equivalent to the contact between a steel ball and the rail surface; this greatly reduces the installation datum The accuracy of the surface is required, and the assembly saves time and effort.

3. Lower maintenance and replacement costs: The V-rail rack drive system can individually replace the worn V-rail or V-shaped rollers, without all needing to be replaced.

4. Longer service life: Generally speaking, the V-rail is the longer-life component in the complete V-rail rack drive system; for the V-rail under good working conditions, only the rollers can be replaced.

Application for linear guide:

Linear guide SNR35R is widely used in the below industries.

• Electronic equipment

• CNC machine tools

• wind power
