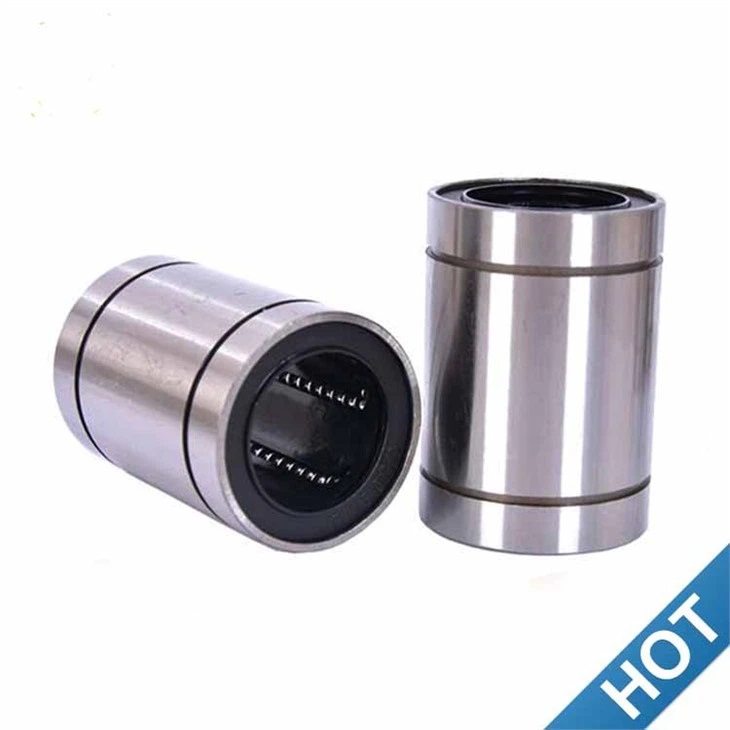

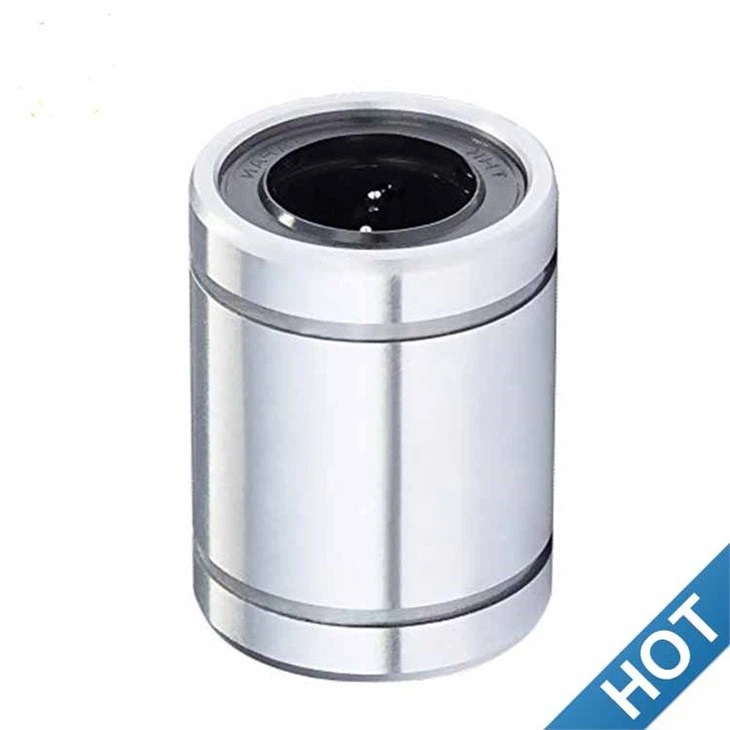

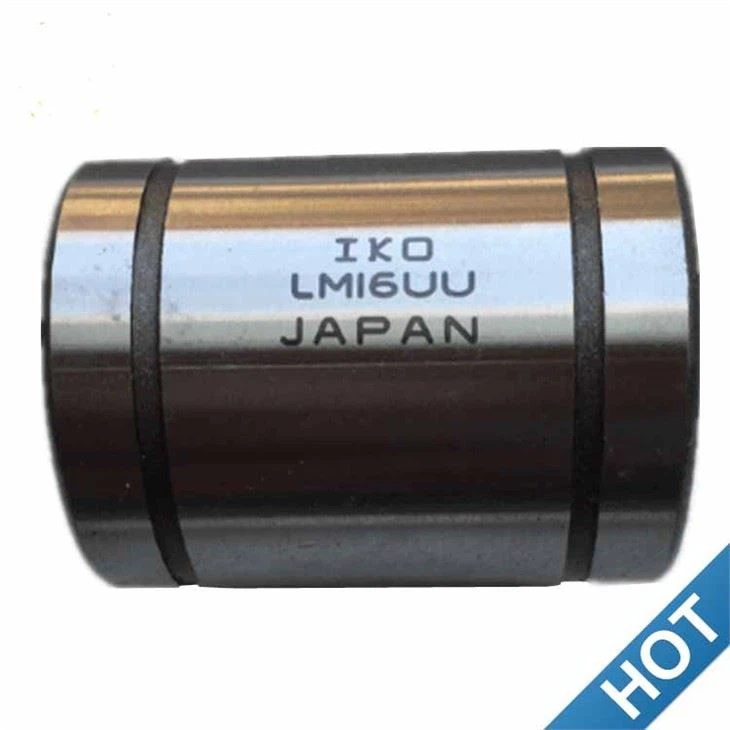

LM16UU IKO Linear Bearing
*LM16UU Bearing
*Dimensions: 16x28x37mm
*Weight: 0.05KG
*Datasheets and drawings can be offered.
*They are stock available for fast delivery.
*If you want to know more about LM16UU bearing, email: alita@bearing-sun.com
Linear motion bearings are low-cost production linear motion systems for use with cylindrical shafts with infinite travel. Since the bearing ball is in point contact with the shaft, the operating load is small. The steel ball rotates with minimal frictional resistance, resulting in a smooth motion with high precision.
|
Type |
Linear ball bearing |
|
Model |
LM16UU |
|
d |
16 mm |
|
D |
28 mm |
|
B |
37 mm |
| D1 | 27 mm |
| B1 | 26.5 mm |
| W | 1.6 mm |
| Basic dynamic load rating | 0.71 kN |
| Basic static load rating | 0.53 kN |
|
Weight |
0.05 kg |
Application for linear ball bearings:
Linear bearings are widely used in Small diesel generators, wall materials, surgical instruments, granulators, building decoration raw materials and accessories, sanitation gardens, vacuum generators, hydraulic equipment, anesthesia equipment, anesthesia machines, etc.
