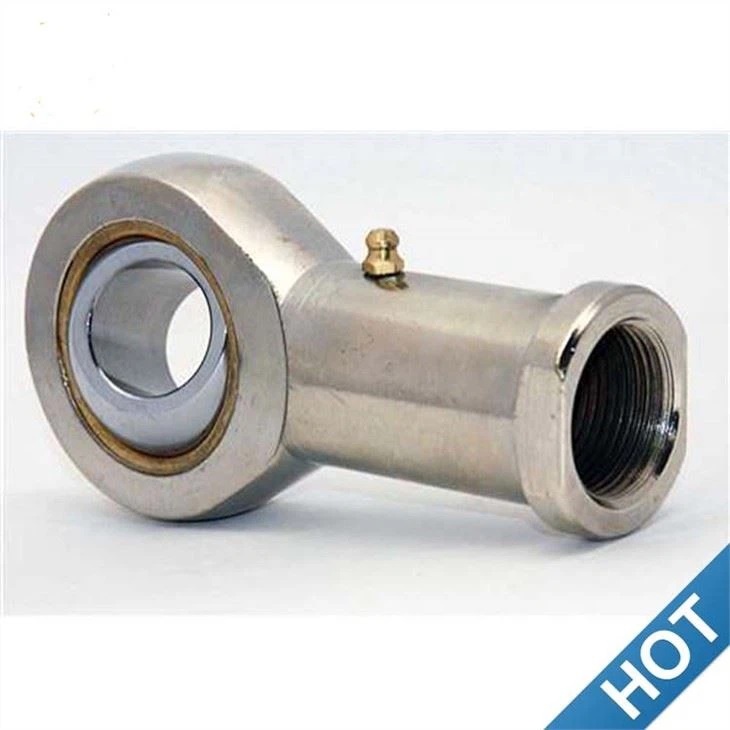

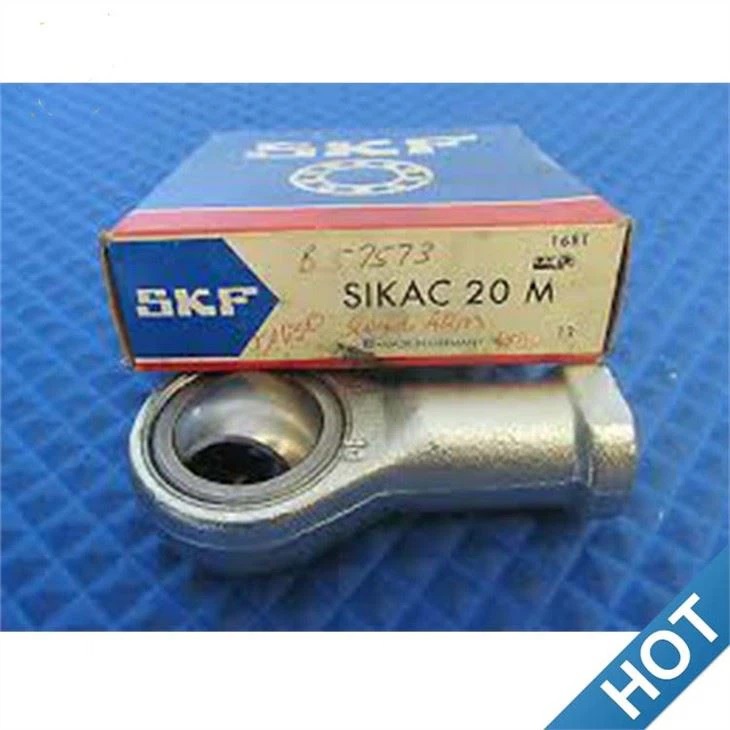

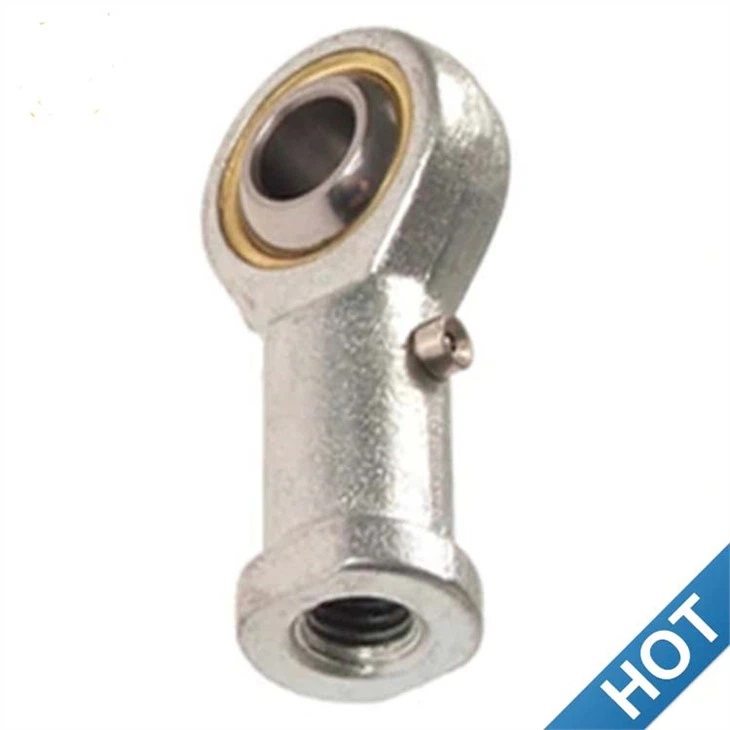

SIKAC 20 M Bearing
*SIKAC 20 M Bearing
*Dimensions: 20x25x103mm
*Weight: 0.4KG
*Datasheets and drawings can be offered.
*They are stock available for fast delivery.
*If you want to know more about SIKAC 20 M bearing, email: sales.sg@lsbearing.com
A joint bearing or rod end bearing is a kind of sliding bearing with a special structure. It is mainly composed of an outer spherical inner ring and a spherical structure outer ring. Joint bearings are generally used for low-speed swing motion (ie, angular motion), because the sliding surface is spherical, and can also be tilted within a certain range of motion (ie, self-aligning movement)
Data sheet and drawing for SIKAC 20 M bearing:
| Type | Rod End Bearing |
| Model | SIKAC 20 M |
| d |
20 mm |
| d2 max | 51 mm |
| B | 25 mm |
| G | M20x1.5 |
| h1 | 77 mm |
| dk | 34.9 mm |
| d3 | 27.5 mm |
| d4 max | 37 mm |
| l3 min | 30 mm |
| l4 max | 103 mm |
| w | 30 mm |
| Basic dynamic load rating | 31.5 kN |
| Basic static load rating | 35.5 kN |
| Mass | 0.4 KG |
Certificates:
For original bearings, we can provide a Certificate of Origin and COO from the Chamber of Commerce.
