NU 226 ECM/C3VL2071 Bearing
NU 226 ECM/C3VL2071 Bearing
Dimensions: 130x230x40mm
Weight: 7.62KG
Datasheets and drawings can be offered.
They are stock available for fast delivery.
If you want to know more about NU 226 ECM/C3VL2071 bearing, email: alita@bearing-sun.com
NU 226 ECM/C3VL2071 is into coat cylindrical roller bearing.
The outer surface of their inner or outer ring is coated with an insulating aluminum oxide layer, by applying a complex plasma spray process to obtain an excellent quality finish.
NU 226 ECM/C3VL2071 bearing data sheet and drawing:
|
Type |
Insocoat bearings |
|
Model |
NU 226 ECM/C3VL2071 |
|
d |
130 mm |
|
D |
230 mm |
|
B |
40 mm |
| F | 153.5 mm |
| Basic dynamic load rating | 415 kN |
| Basic static load rating | 455 kN |
| Reference speed | 3200 r/min |
| Limiting speed | 3400 r/min |
|
Mass |
7.62 kg |
Application for insulated bearings:
Insulated bearings provide reliable protection against electrical corrosion caused by the passage of current, and can be used in motors, generators, and other electrical equipment.
Since insulated bearings can avoid damage caused by electrical corrosion, they can prevent
The current is 3000VDC, so compared with ordinary bearings, the application in the motor can be guaranteed more reliable operation.

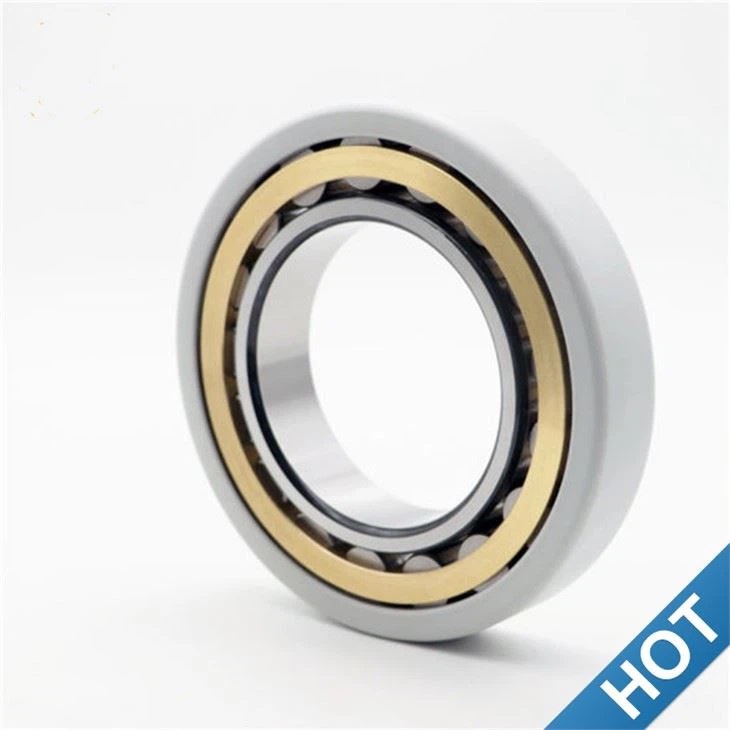

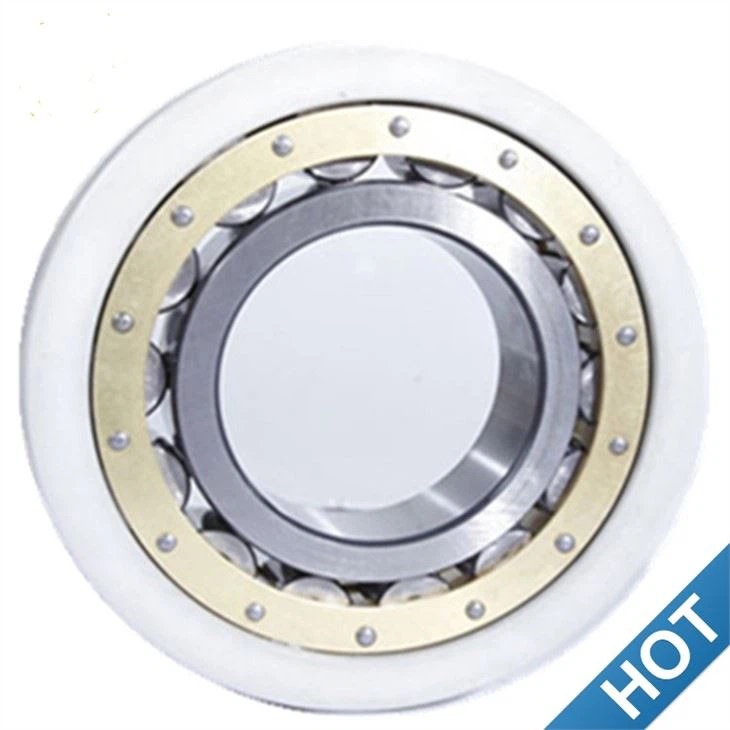

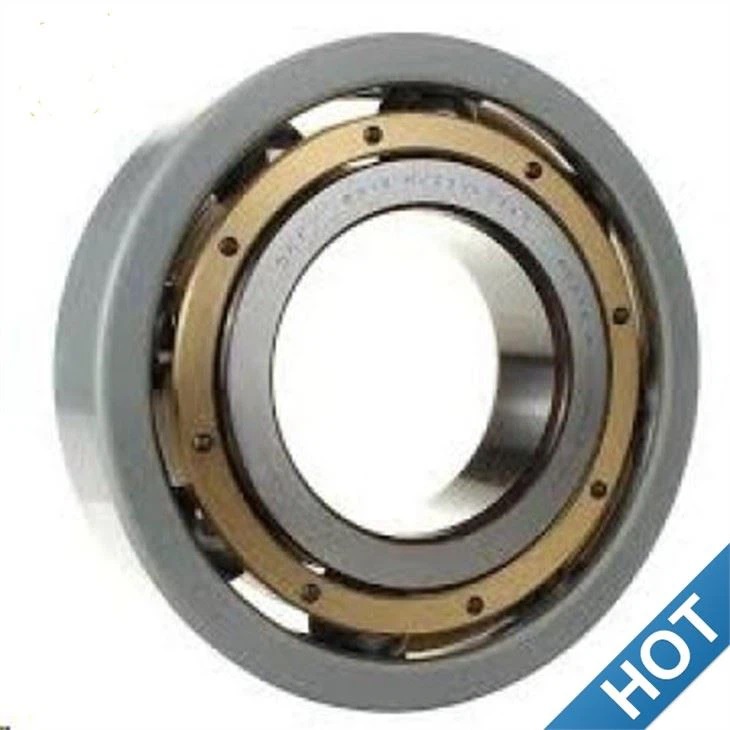

Picture of bearing NU 226 ECM/C3VL2071:
If you want to know others about coat bearing, please send us an inquiry below or send us a WhatsApp message.
