PRODUCT
53220U Ball Bearing

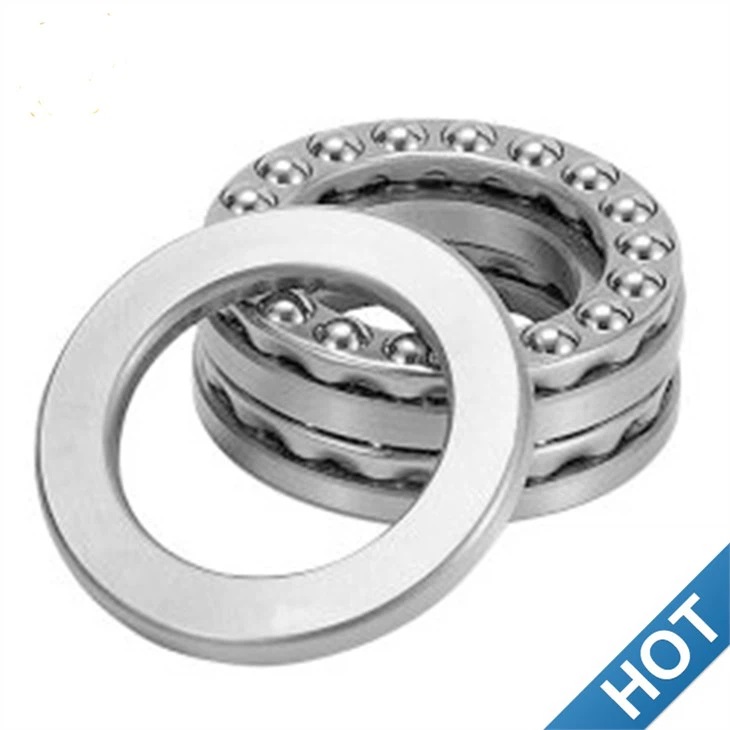

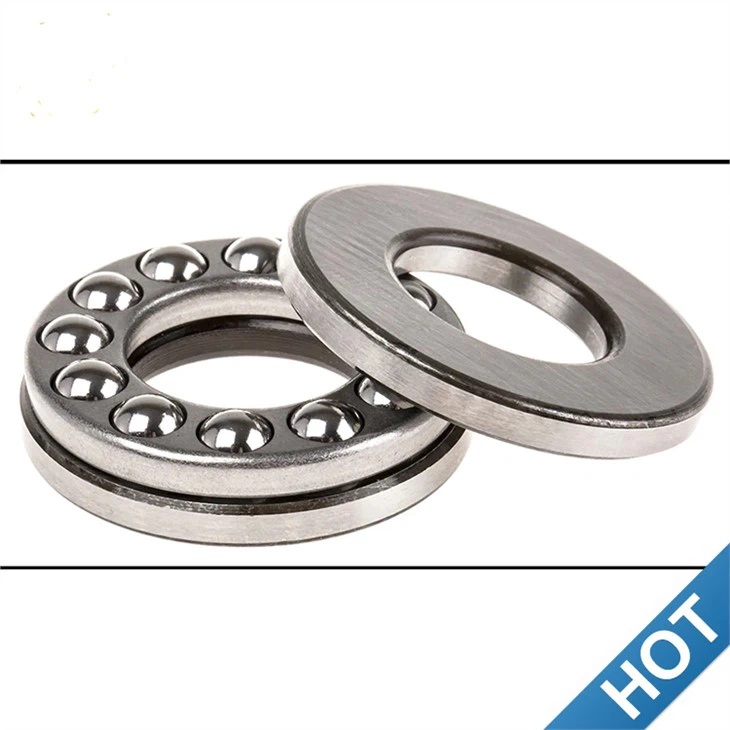

53220U Thrust Ball Bearing
Dimensions: 100x150x45mm
Weight：2.84KG
Data-sheet and drawings can be offered.
They are stock available for fast delivery.
If you want to know more about 53220U bearing, email: alita@bearing-sun.com
53220U is a thrust ball bearing with aligning seat washer. It is a steel cage. This is KOYO brand calling.
Data sheet and drawing for 53220U bearing:
|
Type |
Thrust ball bearing |
|
Model |
53220U |
|
d |
100 mm |
|
D |
150 mm |
|
T |
45 mm |
|
d1 max |
150 mm |
|
D1 min |
103 mm |
|
Basic dynamic load rating |
183 kN |
|
Basic static load rating |
410 kN |
| Fatigue load limit | 16.6 kN |
| Limiting speed(grease lubrication) | 1200 r/min |
| Limiting speed(oil lubrication) | 1900 r/min |
|
Mass |
2.84 kg |
Application for thrust ball bearing:
They are mainly used in bend test machines, vibration sieves, energy-saving melting furnaces, non-weaving machinery, CVT, thread-stripped machines, dairy machines, rolling guides, raw and drug equipment and machinery, injection molding machines accessories, desulfurization, and dust removal equipment, mixed laboratory use Equipment, crushing machines, pharmaceutical equipment, revolution, and other fields.
Picture of 61860 bearings:
A large warehouse for all types of bearings:
