Product Description

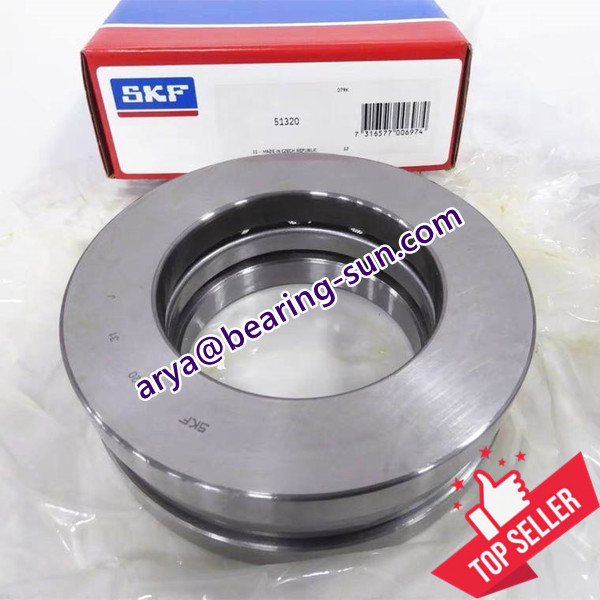

51320 SKF
51320 bearing is a single-direction thrust ball bearing,has a bore diameter of 100 mm, an outside diameter of 170 mm, and a height of 55 mm
Please feel free to email me if you are interested .arya@bearing-sun.com

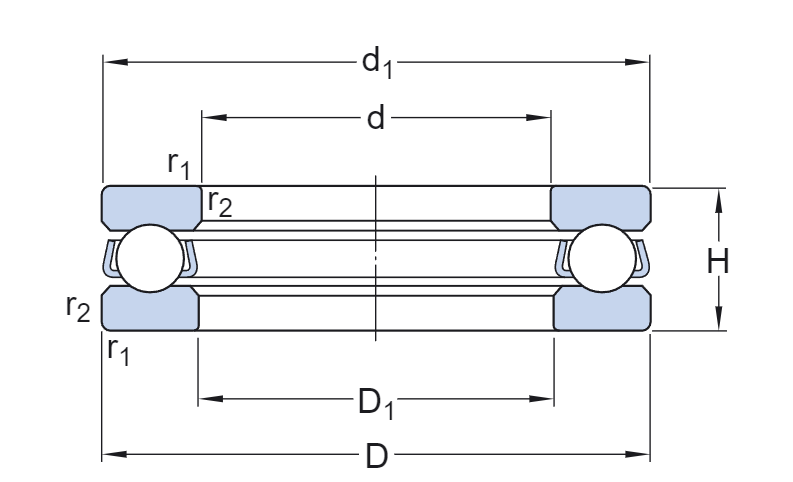

Drawing & Size
| Model No. | 51320 SKF |
| Type | Thrust Ball bearings |
| d | 100 mm |
| D | 170 mm |
| H | 55 mm |
| Weight | 4.92 KG |
Below same series bearings are recommended
| Model No. | d[mm] | D[mm] | H[mm] |
| BA 3 | 3 | 8 | 3.5 |
| BA 4 | 4 | 10 | 4 |
| BA 5 | 5 | 12 | 4 |
| BA 6 | 6 | 14 | 5 |
| BA 7 | 7 | 17 | 6 |
| BA 8 | 8 | 19 | 7 |
| BA 9 | 9 | 20 | 7 |
| 51100 | 10 | 24 | 9 |
| 51200 | 10 | 26 | 11 |
| 51101 | 12 | 26 | 9 |
| 51201 | 12 | 28 | 11 |
| 53201 | 12 | 28 | 11.4 |
| 51102 | 15 | 28 | 9 |
| 51202 | 15 | 32 | 12 |
| 53202 | 15 | 32 | 13.3 |
| 51103 | 17 | 30 | 9 |
| 51203 | 17 | 35 | 12 |
| 53203 | 17 | 35 | 13.2 |
| 51104 | 20 | 35 | 10 |
| 51204 | 20 | 40 | 14 |
| 53204 | 20 | 40 | 14.7 |
| 51105 | 25 | 42 | 11 |
| 51205 | 25 | 47 | 15 |
| 51305 | 25 | 52 | 18 |
| 51405 | 25 | 60 | 24 |
| 53205 | 25 | 47 | 16.7 |
| 51106 | 30 | 47 | 11 |
| 51206 | 30 | 52 | 16 |
