234418-M-SP FAG
Product Attributes :
Model No. 234418-M-SP FAG
Type : Thrust Ball bearings
Size: 90x140x60mm
Weight: 2.9KG
Datasheet and drawing can be offered.
Stock available for fast delivery,contact me for a quick quotation
Sales Director :arya
Email: arya@bearing-sun.com
Product Description

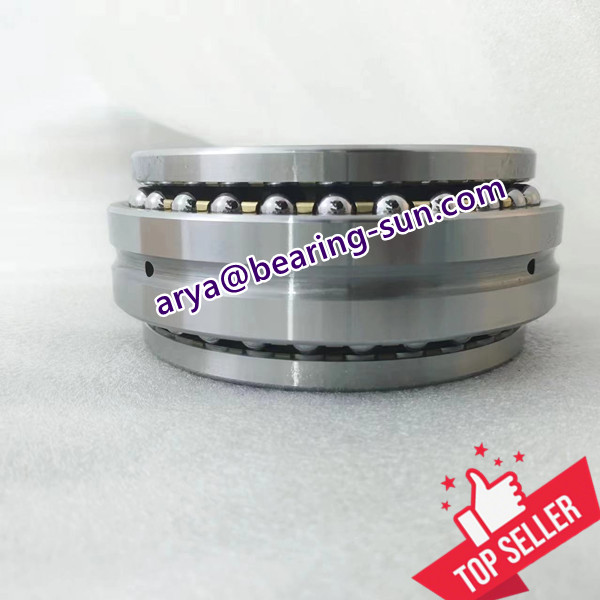

234418-M-SP FAG
The 234418-M-SP is a double-direction thrust angular contact ball bearing ，Widely used in high-precision equipment such as CNC machine tool spindles, precision reducers, and industrial robots, where accurate positioning and stable axial load bearing are required.
Please feel free to email me if you are interested .arya@bearing-sun.com

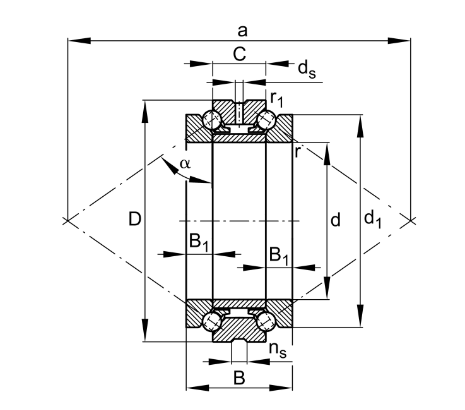

Drawing & Size
| Model No. | 234418-M-SP FAG |
| Type | Thrust Ball bearings |
| d | 90 mm |
| D | 140 mm |
| H | 60 mm |
| Weight | 2.9KG |
Below same series bearings are recommended
| Bearing Number | d | D | H | m | |||||
| 234418-M-SP | 234418 BM1/SP | BTW 90 CTN9/SP | 2268118 | 562018 | 90TAC20X+L | 90 mm | 140 mm | 60 mm | 2.45 KG |
| 234419-M-SP | 234419 BM1/SP | BTW 95 CTN9/SP | 2268119 | 562019 | 95TAC20X+L | 95 mm | 145 mm | 60 mm | 2.55 KG |
| 234420-M-SP | 234420 BM1/SP | BTW 100 CTN9/SP | 2268120 | 562020 | 100TAC20X+L | 100 mm | 150 mm | 60 mm | 2.66 KG |
| 234421-M-SP | 2268121 | 562021 | 105TAC20X+L | 105 mm | 160 mm | 66 mm | 3.41 KG | ||
| 234422-M-SP | 234422 BM1/SP | BTW 110 CTN9/SP | 2268122 | 562022 | 110TAC20X+L | 110 mm | 170 mm | 72 mm | 4.75 KG |
| 234424-M-SP | 234424 BM1/SP | BTW 120 CTN9/SP | 2268124 | 562024 | 120TAC20X+L | 120 mm | 180 mm | 72 mm | 4.72 KG |
| 234426-M-SP | 234426 BM1/SP | 2268126 | 562026 | 130TAC20X+L | 130 mm | 200 mm | 84 mm | 6.86 KG | |
| 234428-M-SP | 234428 BM1/SP | BTW 140 CM/SP | 2268128 | 562028 | 140TAC20D+L | 140 mm | 210 mm | 84 mm | 8.78 KG |
| 234430-M-SP | 234430 BM1/SP | BTW 150 CM/SP | 2268130 | 562030 | 150TAC20D+L | 150 mm | 225 mm | 90 mm | 9.21 KG |
| 234432-M-SP | 234432 BM1/SP | BTW 160 CM/SP | 2268132 | 562032 | 160TAC20D+L | 160 mm | 240 mm | 96 mm | 11.1 KG |
| 234434-M-SP | 234434 BM1/SP | BTW 170 CM/SP | 2268134 | 562034 | 170TAC20D+L | 170 mm | 260 mm | 108 mm | 15.3 KG |
| 234436-M-SP | 234436 BM1/SP | BTW 180 CM/SP | 2268136 | 562036 | 180TAC20D+L | 180 mm | 280 mm | 120 mm | 20.5 KG |
| 234438-M-SP | 234438 BM1/SP | BTW 190 CM/SP | 2268138 | 562038 | 190TAC20D+L | 190 mm | 290 mm | 120 mm | 24.1 KG |
| 234440-M-SP | 234440 BM1/SP | BTW 200 CM/SP | 2268140 | 562040 | 200TAC20D+L | 200 mm | 310 mm | 132 mm | 30.9 KG |
| 234444-M-SP | 562044 | 220TAC20D+L | 220 mm | 340 mm | 144 mm | 36.9 KG | |||
| 234448-M-SP | 562048 | 240TAC20D+L | 240 mm | 360 mm | 144 mm | 38.9 KG | |||
| 234452-M-SP | 562052 | 260TAC21D+L | 260 mm | 400 mm | 164 mm | 56.5 KG | |||
| 234456-M-SP | 562056 | 280TAC22D+L | 280 mm | 420 mm | 164 mm | 57.1 KG | |||
| 234460-M-SP | 562060 | 300 mm | 460 mm | 190 mm | 90.7 KG | ||||
| 234464-M-SP | 562064 | 320 mm | 480 mm | 190 mm | 90.3 KG | ||||
| 234468-M-SP | 340 mm | 520 mm | 212 mm | 122 KG | |||||
| 234472-M-SP | 360 mm | 540 mm | 212 mm | 128 KG | |||||
| 234476-M-SP | 380 mm | 560 mm | 212 mm | 133 KG | |||||
| 234480-M-SP | 400 mm | 600 mm | 236 mm | 198 KG | |||||
